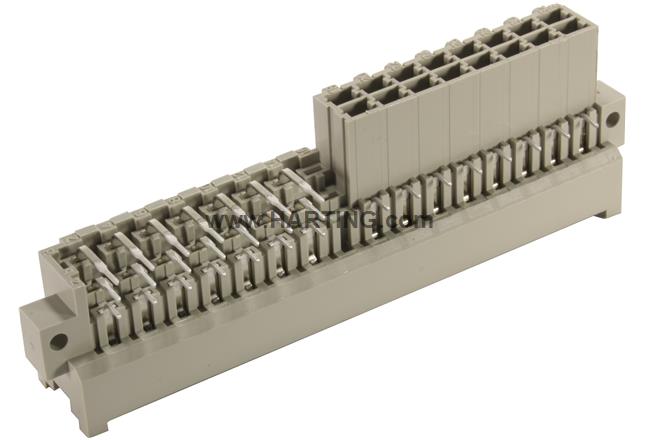

DIN-Power FM045MC-3,0C1-1
Connectors, Male connector, Wave soldering termination, Crimp termination, Rated current: 6 A, Contacts: 45, Angled, Copper alloy, Noble metal over Ni, Mating side, Sn over Ni, Termination side, Performance level: 1, acc. to IEC 60603-2, Coding: Coding with loss of contacts, PCB fixing: With fixing flange, Thermoplastic resin, glass-fibre filled, RAL 7032 (pebble grey)
Part number: 09 06 145 2971
Go to:
- Category Connectors
- Series DIN 41612
- Identification Type FM
- Element Male connector
- Description of the contact Angled
- Features lead-free
-
Termination method
Wave soldering terminationCrimp termination
-
Connection type
Motherboard to daughtercardPCB to cableCable to cable
- Number of contacts 45
-
Contact configuration
Rows z, b and d, positions 2, 4, 6, 8, 10, 12, 14Row a, positions 18, 20, 22, 24, 26, 28, 30, 32
- Coding Coding with loss of contacts
- PCB fixing With fixing flange
- Details Please order crimp contacts separately.
- Contact rows 3
-
Contact spacing (termination side)
2.54 mm5.08 mm
-
Contact spacing (mating side)
3.81 mm5.08 mm
- Rated current 6 A
- Rated current Rated current measured at 20 °C, see derating curve for details
- Clearance distance ≥ 1.6 mm
- Creepage distance ≥ 3 mm
- Insulation resistance >1012 Ω
- Contact resistance ≤ 15 mΩ
- Limiting temperature -55 ... +125 °C
- Insertion and withdrawal force ≤ 70 N
-
Performance level
1acc. to IEC 60603-2
- Mating cycles ≥ 500
-
Test voltage Ur.m.s.
1.55 kV (contact-contact)2.5 kV (contact-ground)
- Isolation group IIIa (175 ≤ CTI < 400)
- Hot plugging No
- Material (insert) Thermoplastic resin, glass-fibre filled
- Colour (insert) RAL 7032 (pebble grey)
- Material (contacts) Copper alloy
-
Surface (contacts)
Noble metal over Ni Mating sideSn over Ni Termination side
- Material flammability class acc. to UL 94 V-0
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances No
- REACH ANNEX XIV substances No
- REACH SVHC substances No
- California Proposition 65 substances Yes
-
California Proposition 65 substances
NickelLeadAntimony trioxide
- Specifications IEC 60603-2 (complementary)
-
UL / CSA
UL 1977 ECBT2.E102079CSA-C22.2 No. 182.3 ECBT8.E102079
- Railway classification F4/I3 acc. to NFF 16-101/102
- Packaging size 20
- Net weight 21.6 g
- Country of origin Germany
- European customs tariff number 85366990
- eCl@ss 27460201 PCB connector (board connector)
