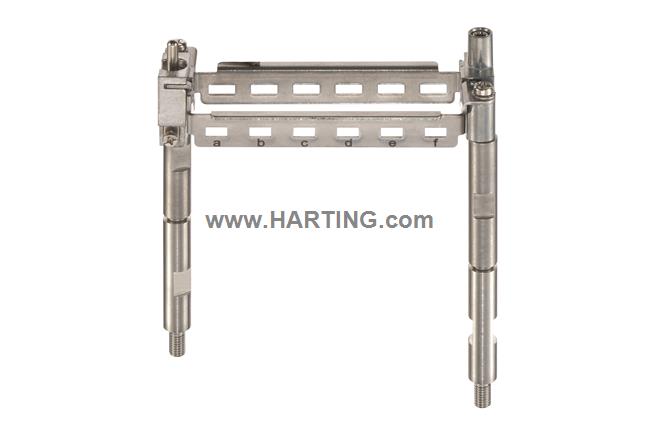

Han 16HPR EasyCon PE Modular Frame a-f
Frame, for up to 6 single modules, a ... f, Size: 16 B
Part number: 09 40 016 9934
- Category Accessories
- Type of accessory Frame
Description of the accessory
for up to 6 single modulesa ... f
- Size 16 B
1x male PE adapter1x female PE adapter2x M4/M5 distance bolts (A/F 7)2x M5/M6 distance bolts (A/F 7)2x M3 screw2x M4 screw2x washer SK S4
4 ... 10 mm² PE terminal power side1 ... 2.5 mm² PE terminal signal side
0.5 Nm Fixing screws M31.5 Nm Fixing screws M46 Nm Distance bolt0.8 Nm PE terminal clamp 1 ... 2.5 mm21.5 Nm PE terminal clamp 4 ... 10 mm2
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
Zinc die-castStainless steel
