Resumen de caracterísiticas
Conectores

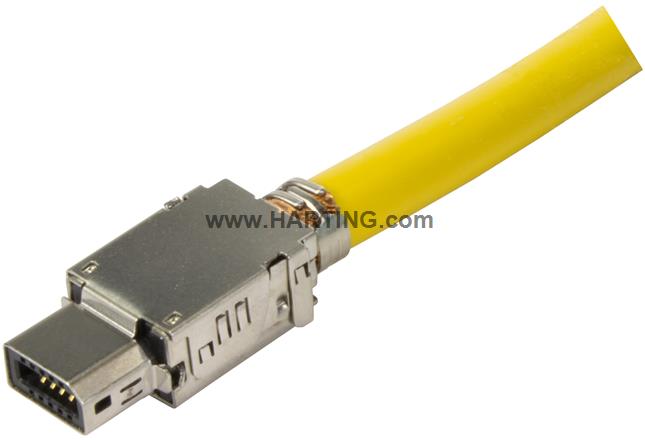

Conector de cable Recto, Sin capota
Terminación de soldadura
Corriente nominal: 1.5 A
Contactos: 10
Aleación de cobre
Au ≥ 0,2 µm sobre Ni ≥ 2 µm Lado de acoplamiento, Au ≥ 0,03 µm sobre Ni ≥ 2 µm Lado de terminación
Detalles del producto
Identification
- Category Connectors
- Series HARTING ix Industrial®
- Identification Signal
- Element Cable connector
-
Specification
StraightWithout lockingWithout hood
Version
- Termination method Solder termination
- Shielding Fully shielded, 360° shielding contact
- Number of contacts 10
- Coding Type B
- Pack contents Bulk packaging
Technical characteristics
- Conductor cross-section (AWG) AWG 28/7 ... AWG 22/7
- Wire outer diameter ≤1.55 mm
- Rated current 1.5 A
- Rated current 3 A per contact when used with 4 contacts (1,2,6,7)
-
Rated voltage
50 V AC 60 V DC
- Insulation resistance >500 MΩ
- Contact resistance ≤ 30 mΩ
- Shielding resistance ≤ 100 mΩ
- Limiting temperature -40 ... +85 °C
- Storage temperature -30 ... +60 °C
-
Relative humidity
95 % Non-condensing (operation)95 % Non-condensing (storage/transport)
- Mating cycles ≥ 5,000
- Test voltage Ur.m.s. 0.5 kV
Material properties
- Material (insert) Polyamide (PA)
- Colour (insert) Black
-
Material (shielding)
Stainless steelNi ≥ 1 µm Termination side (shielding case)Ni ≥ 0.2 µm Termination side (shielding shell)
- Material (contacts) Copper alloy
-
Surface (contacts)
Au ≥ 0.2 µm over Ni ≥ 2 µm Mating sideAu ≥ 0.03 µm over Ni ≥ 2 µm Termination side
- Material flammability class acc. to UL 94 V-0
Specifications and approvals
Commercial data
- Packaging size 200
- Country of origin China
- European customs tariff number 85366990
- GTIN 5713141167222
- eCl@ss 27440114 Rectangular connector (for field assembly)
- ETIM EC002636
- UNSPSC 24.0 39121408
