Este producto está disponible bajo petición. Por favor, póngase en contacto con su oficina de ventas HARTING.

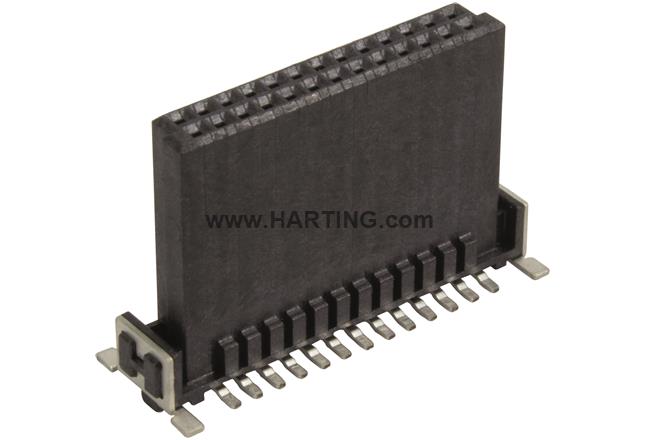

La imagen se muestra con fines ilustrativos exclusivamente. Consulte la descripción del producto.
har-flex str F 13.65mm 34p PL1 170pcs
Connectors, Female connector, Reflow soldering termination (SMT), Contacts: 34, Straight, Copper alloy, Au over Pd/Ni, Mating side, Tin plated, Termination side, Performance level: 1, Liquid crystal polymer (LCP)
N.º de referencia: 15 23 034 2601 000
Go to:
- Category Connectors
- Series har-flex®
- Identification Signal
- Element Female connector
- Description of the contact Straight
- Termination method Reflow soldering termination (SMT)
-
Connection type
Motherboard to daughtercardMezzanine
- Number of contacts 34
- Pack contents 170 pieces on reel
- Contact rows 2
- Contact spacing (mating side) 1.27 mm
- Stacking height 13.65 mm
- Clearance distance ≥ 0.4 mm
- Creepage distance ≥ 0.4 mm
- Insulation resistance >109 Ω
- Contact resistance < 25 mΩ
- Limiting temperature -55 ... +125 °C
- Insertion and withdrawal force ≈ 17 N
- Performance level 1
- Mating cycles ≥ 500
- Test voltage Ur.m.s. 0.5 kV
- Isolation group IIIa (175 ≤ CTI < 400)
- Material (insert) Liquid crystal polymer (LCP)
- Material (contacts) Copper alloy
-
Surface (contacts)
Au over Pd/Ni Mating sideTin plated Termination side
- Material flammability class acc. to UL 94 V-0
- UL / CSA UL 1977 ECBT2.E102079
- Packaging size 1
- Country of origin China
- European customs tariff number 85366990
- eCl@ss 27460201 PCB connector (board connector)
