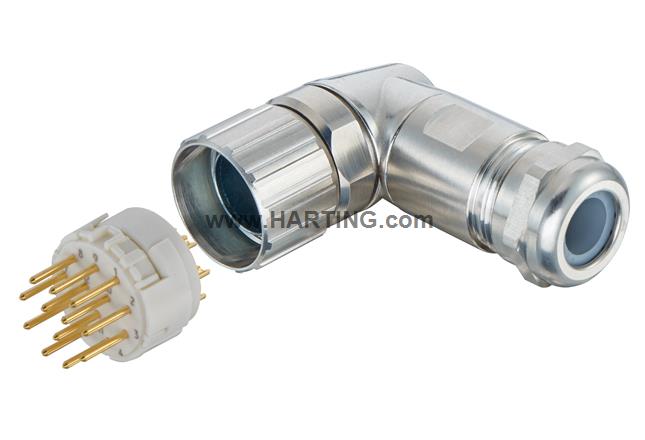

Resumen de caracterísiticas
Juegos de conectores
Terminación de soldadura
Macho
Corriente nominal: 8 A
Contactos: 12
Aleación de cobre
Chapado en oro
Capota
Bloqueo a tornillo
Entrada en ángulo
1x Integrado
Rango de sujeción: 7 ... 12 mm
Diámetro: Aleación de cobre-cinc
Niquelado
Grado de protección: IP67 estado bloqueado, IP69 / IPX9K según ISO 20653 estado bloqueado
Detalles del producto
Identification
- Category Connector sets
- Series Circular connectors M23
- Identification Signal
- Type of hood/housing Hood
Version
- Termination method Solder termination
- Gender Male
- Number of contacts 12
- Version Angled entry
- Number of cable entries 1
- Cable entry 1x Integrated
- Locking type Screw locking
Technical characteristics
- Conductor cross-section (mm²) 1 mm² max.
- Rated current 8 A
- Rated voltage 200 V
- Rated impulse voltage 2.5 kV
- Pollution degree 3
- Insulation resistance >1010 Ω
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
-
Degree of protection acc. to IEC 60529
IP67 locked conditionIP69 / IPX9K acc. to ISO 20653 locked condition
- Clamping range 7 ... 12 mm
Material properties
- Material (insert) Polyamide (PA)
- Colour (insert) RAL 7032 (pebble grey)
- Material (contacts) Copper alloy
- Surface (contacts) Gold plated
- Material (hood/housing) Copper-zinc alloy
- Surface (hood/housing) Nickel plated
- Material flammability class acc. to UL 94 V-0
- RoHS compliant with exemption
- RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status compliant with exemption
- China RoHS 50
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Yes
- REACH SVHC substances Lead
- California Proposition 65 substances Yes
- California Proposition 65 substances Lead
Commercial data
- Packaging size 1
- Country of origin Germany
- European customs tariff number 85366990
- GTIN 5713140190412
- eCl@ss 27440113 Rectangular connectors (set)
- ETIM EC002636
- UNSPSC 24.0 39121408
