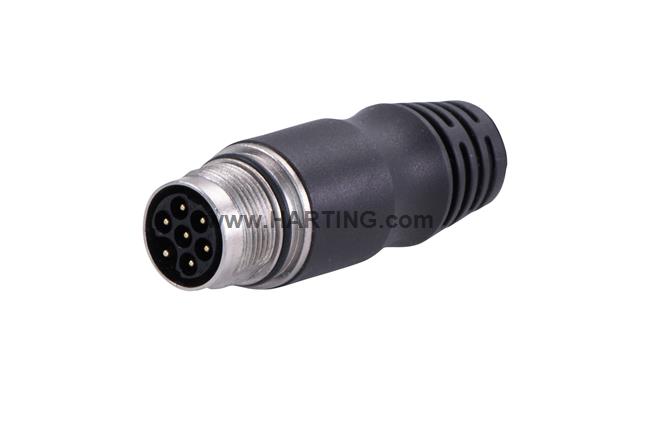

Identification
- Category Connectors
- Element Cable connector
- Specification Straight
Version
- Termination method Screw termination
- Gender Male
- Shielding Shielded
- Number of contacts 7
- Number of signal contacts 6
- Number of special contacts 1x PE contact
- Specification of special contacts PE contact
Technical characteristics
- Conductor cross-section (AWG) AWG 18
- Wire outer diameter 1.13 mm
- Rated current 8 A
- Rated voltage 300 V
- Pollution degree 3
- Limiting temperature -20 ... +80 °C
- Mating cycles ≥ 100
- Degree of protection acc. to IEC 60529 IP67
- Cable diameter 7.5 mm
Material properties
- Material (insert) PA6
- Colour (insert) Black
- Material (contacts) Copper
- Surface (contacts) Gold plated
- Material (hood/housing) Thermoplastic polyurethane (TPU)
- Colour (hood/housing) Black
Specifications and approvals
- Specifications IEC 63171-6
- UL / CSA UL 1581 VW-1
Commercial data
- Packaging size 1
