Resumen de caracterísiticas
Conector de cable
Recto
Macho
Codificación X
Terminación de engaste
PA66
Contactos: 8
Sección de conductor: 0.08 ... 0.25 mm²
Corriente nominal: 0.5 A
Cinc fundido a presión
PushPull invers
Grado de protección: IP65 / IP67 estado conectado

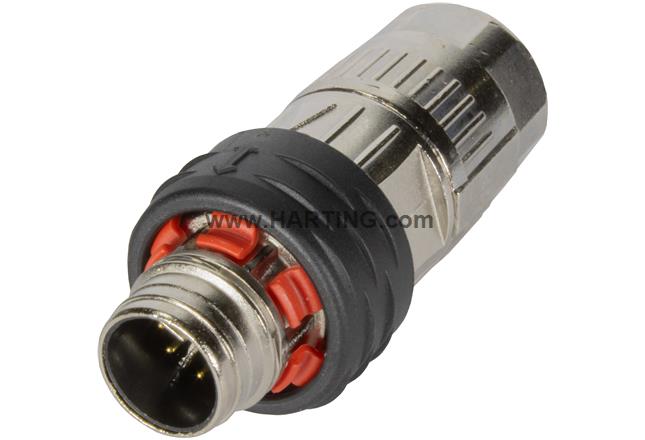

Detalles del producto
Identification
- Category Connectors
- Series Circular connectors M12
- Identification Slim Design
- Element Cable connector
- Specification Straight
Version
- Termination method Crimp termination
- Gender Male
- Shielding Shielded
- Number of contacts 8
- Coding X-coding
- Locking type PushPull invers
- Details Please order crimp contacts separately.
- Details For Ethernet applications up to 10 Gbit only
Technical characteristics
- Conductor cross-section 0.08 ... 0.25 mm²
- Conductor cross-section [AWG] AWG 28 ... AWG 23
- Wire outer diameter ≤ 1.4 mm
- Rated current 0.5 A
-
Rated voltage
48 V AC 60 V DC
- Rated impulse voltage 0.8 kV
- Pollution degree 3
- Transmission characteristics Cat. 6A Class EA up to 500 MHz
- Overvoltage category III
-
Data rate
10 Mbit/s 100 Mbit/s 1 Gbit/s 2.5 Gbit/s 5 Gbit/s 10 Gbit/s
- Insulation resistance >108 Ω
- Contact resistance ≤ 10 mΩ
- Limiting temperature -40 ... +85 °C
- Mating cycles ≥ 100
- Degree of protection acc. to IEC 60529 IP65 / IP67 mated condition
- Cable diameter 5.7 ... 8.8 mm
- Isolation group I (600 ≤ CTI)
Material properties
- Material (insert) PA66
- Material (hood/housing) Zinc die-cast
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Yes
- California Proposition 65 substances Nickel
Specifications and approvals
-
Specifications
IEC 61076-2-109IEC 61076-2-010
Commercial data
- Packaging size 1
- Net weight 46.29 g
- Country of origin Germany
- European customs tariff number 85366990
- eCl@ss 27440116 Circular connector (for field assembly)
- ETIM EC002635
