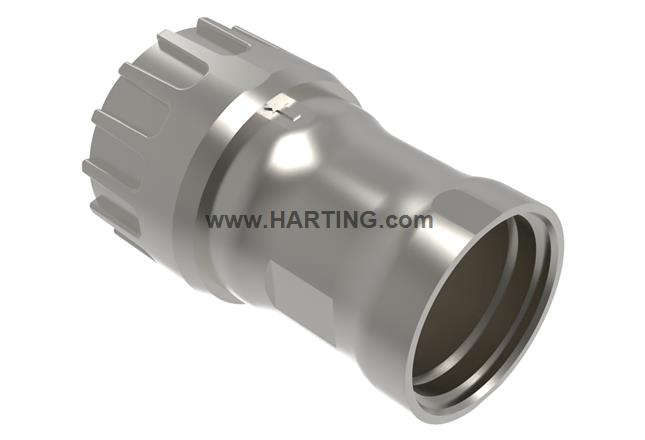

Resumen de caracterísiticas
Base de cable, Carcasa
con rosca M32 integrada, Recto
Tamaño: 20
Enclavamiento mediante bayoneta
Entrada superior
1x M32
Material (capota/base): Cinc fundido a presión
Niquelado
Material (junta): EPDM
Grado de protección: IP67, IPX9
Detalles del producto
Identification
- Category コネクタ
- Series HARTING ICC
-
Type of hood/housing
ケーブルハウジングバックシェル
-
Description of hood/housing
一体型M32ネジ付きストレート型
Version
- Size 20
- Version Top entry
- Number of cable entries 1
- Cable entry 1x M32
- Locking type Bayonet locking
Technical characteristics
- Tightening torque 15 Nm Backshell
- Limiting temperature -40 ... +125 °C
-
Degree of protection acc. to IEC 60529
IP67IPX9
Material properties
- Material (hood/housing) 亜鉛ダイカスト
- Surface (hood/housing) ニッケルメッキ
- Material (seal) EPDM
- Colour (seal) 黒
Specifications and approvals
-
Specifications
IEC 61984IEC 60664-1
- Approvals CE
Commercial data
- Packaging size 1
- eCl@ss 27440224 Shell for circular connectors
- UNSPSC 24.0 39121405
