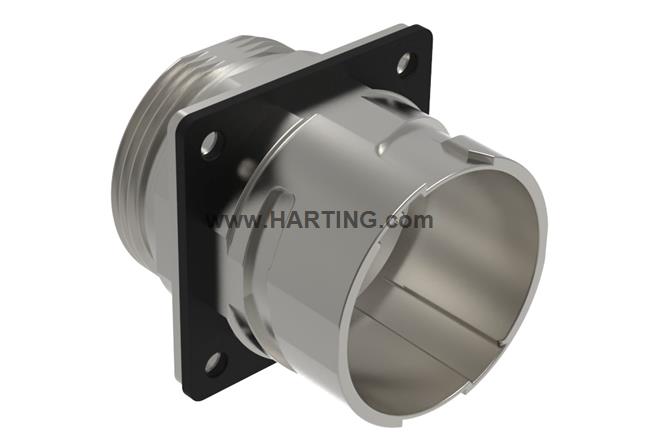

Resumen de caracterísiticas
Base montaje tipo pasamuros
Recto, Montaje frontal/montaje trasero
Tamaño: 20
Enclavamiento mediante bayoneta
Material (capota/base): Cinc fundido a presión
Niquelado
Material (junta): EPDM
Grado de protección: IP67, IPX9
Detalles del producto
Identification
- Category Connectors
- Series HARTING ICC
- Type of hood/housing Bulkhead mounted housing
-
Description of hood/housing
StraightFront mounting / Rear mounting
Version
- Size 20
- Locking type Bayonet locking
- Details Please order backshell or fixing nut separately.
Technical characteristics
- Tightening torque 0.5 Nm Fixing screws M3
- Limiting temperature -40 ... +125 °C
- Number of relockings ≥ 500
-
Degree of protection acc. to IEC 60529
IP67IPX9
Material properties
- Material (hood/housing) Cinc fundido a presión
- Surface (hood/housing) Niquelado
- Material (seal) EPDM
- Colour (seal) Negro
- RoHS conforme
- ELV status conforme
- China RoHS e
- REACH Annex XVII substances No incluido
- REACH ANNEX XIV substances No incluido
- REACH SVHC substances No incluido
- California Proposition 65 substances Sí
- California Proposition 65 substances Níquel
- Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
- Requirement set with Hazard Levels no requirements (flammable mass < 10g)
Specifications and approvals
-
Specifications
IEC 61984IEC 60664-1
- Approvals CE
Commercial data
- Packaging size 1
- Net weight 51.8 g
- Country of origin India
- European customs tariff number 85389099
- GTIN 5713140491137
- eCl@ss 27440224 Shell for circular connectors
- UNSPSC 24.0 39121405
