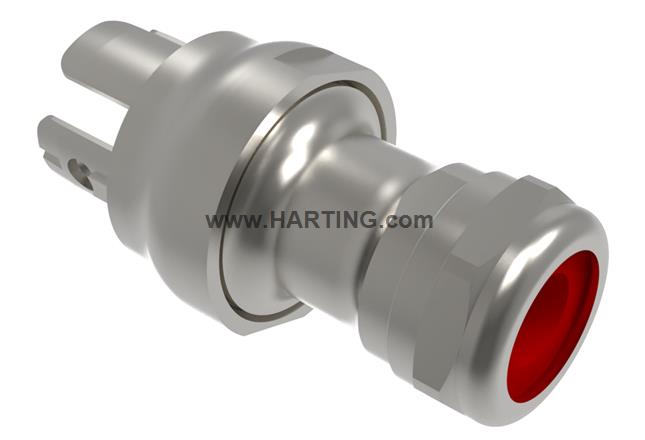

Resumen de caracterísiticas
Carcasa
Con prensaestopa integrado, Recto, Han® 3 A
Tamaño: 20
Material (capota/base): Cinc fundido a presión
Niquelado
Material (junta): TPE
Grado de protección: IP67, IPX9
Detalles del producto
Identification
- Category Connectors
- Series HARTING ICC
- Type of hood/housing Backshell
-
Description of hood/housing
With integrated cable glandStraightHan® 3 A
Version
- Size 20
Technical characteristics
-
Tightening torque
12 Nm Cable gland15 Nm Backshell
- Limiting temperature -40 ... +125 °C
- Number of relockings ≥ 10
-
Degree of protection acc. to IEC 60529
IP67IPX9
- Clamping range 9 ... 13 mm
Material properties
- Material (hood/housing) Zinc die-cast
- Surface (hood/housing) Nickel plated
- Material (seal) TPE
- Colour (seal) Red
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- ECHA SCIP number 564b7d75-7bf6-4cfb-acb1-2168eb61b675
- California Proposition 65 substances Yes
- California Proposition 65 substances Nickel
- Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
- Requirement set with Hazard Levels no requirements (flammable mass < 10g)
Specifications and approvals
-
Specifications
IEC 61984IEC 60664-1
- Approvals CE
Commercial data
- Packaging size 1
- Net weight 159 g
- Country of origin India
- European customs tariff number 85389099
- GTIN 5713140491250
- eCl@ss 27440224 Shell for circular connectors
- UNSPSC 24.0 39121405
