Resumen de caracterísiticas

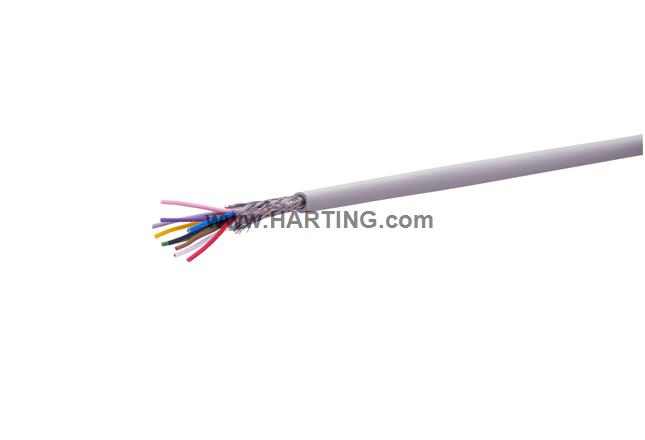

Cable de cobre (redondo)
Resistente al aceite y a UV, Resistencia al ozono, Resistencia a las vibraciones
10x 0,14 mm²
PUR (poliuretano)
Detalles del producto
Identification
- Category Systemverkabelung
- Element Cables a granel
- Specification No montado
- Type of cable Kupferkabel (rund)
-
Description of the cable
Öl- und UV-beständigOzonbeständigkeitVibrationsbeständigkeit
Version
- Number of cores 10
- Core structure 10x 0.14 mm²
- Shielding Unshielded
Technical characteristics
- Rated voltage 350 V
-
Limiting temperature
-40 ... +80 °C unmoved-5 ... +80 °C moved
- Cable diameter 6.5 mm
-
Minimum bending radius
5x Cable diameter (singular bending)10x Cable diameter (repeated bending)
- Test voltage Ur.m.s. 0.8 kV
- Insulation resistance @ 20 °C ≥ 20 MΩ x km
Material properties
- Material (cable) PUR (polyurethane)
- Colour (cable) RAL 7032 (gris guijarro)
Specifications and approvals
-
Specifications
EN 50525-1IEC 60228EN 50363-3EN 50363-10-2
Commercial data
- Packaging size 1,000
- Net weight 54 g/m
- Country of origin Germany
- European customs tariff number 85444995
- eCl@ss 27061801 Data and communication cable (copper)
- UNSPSC 24.0 26121609
