Resumen de caracterísiticas

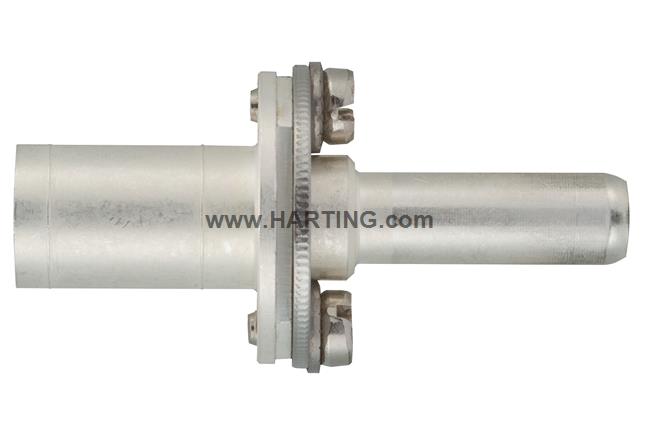

PE-contact
Nominale stroom: ≤250 A
Mannelijk
Koperlegering
Verzilverd
Dwarsdoorsnede geleider: 35 mm²
Detalles del producto
Identification
- Category Contacts
- Series TC 250
- Type of contact PE contact
Version
- Termination method Crimp termination
- Termination method Crimp termination
- Gender Male
- Manufacturing process Turned contacts
- Details The vibration and shock resistance can only be met if the cables are fixed at an appropriate distance. Instructions for the spacing of strain relief can be found in the document in eCatalogue under the section Instructions.
Technical characteristics
- Conductor cross-section 35 mm²
- Rated current ≤ 250 A
- Contact resistance ≤ 0.3 mΩ
- Stripping length 20 mm
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
- Vibration resistance Category 2 acc. to IEC 61373
- Shock resistance Category 2 acc. to IEC 61373
Material properties
- Material (contacts) Медный сплав
- Surface (contacts) Silver plated
- RoHS compliant with exemption
- RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status условно совместим
- China RoHS 50
- REACH Annex XVII substances Не содержится
- REACH ANNEX XIV substances Не содержится
- REACH SVHC substances Да
- REACH SVHC substances Свинец
- ECHA SCIP number b51e5b97-eeb5-438b-8538-f1771d43c17d
- California Proposition 65 substances Да
-
California Proposition 65 substances
СвинецНикель
Specifications and approvals
-
Specifications
IEC 60664-1IEC 61984
Commercial data
- Packaging size 1
- Net weight 44.54 g
- Country of origin Germany
- European customs tariff number 85359000
- GTIN 5713140014916
- eCl@ss 27440204 Contact for industrial connectors
- ETIM EC000796
- UNSPSC 24.0 39121522
