Resumen de caracterísiticas

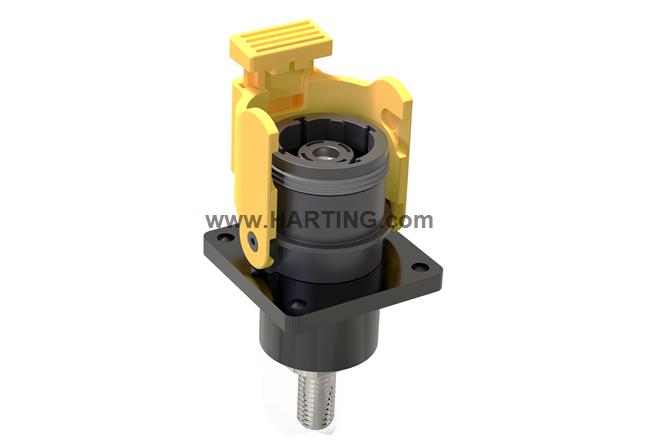

Bulkhead mounted housing
incl. male contact with M10 bolt termination
Single locking lever
Material (hood/housing): Polyamide (PA)
RAL 9005 (jet black)
Detalles del producto
Identification
- Category Hoods / Housings
- Series Han® S
- Identification Han® S 450 Plus
- Type of hood/housing Bulkhead mounted housing
- Description of hood/housing incl. male contact with M10 bolt termination
Version
- Termination method Screw termination
- Number of contacts 1
-
Coding
C3 (front)RC2 (rear)
- Locking type Single locking lever
- Field of application Energy Storage Systems
Technical characteristics
- Rated voltage 2,000 V
- Rated impulse voltage 15 kV
- Pollution degree 3
- Overvoltage category III
- Insulation resistance >109 Ω @ 2500 V DC
- Contact resistance ≤ 0.3 mΩ
-
Tightening torque
1.4 ... 1.6 Nm Fixing screws for receptacles7.5 ... 8 Nm Contacts
- Limiting temperature -40 ... +125 °C
- Note on the limiting temperature For use as a connector according to IEC 61984.
- Number of relockings ≤ 500
-
Degree of protection acc. to IEC 60529
IP67 / IP69K mated conditionIP67 unmated condition & cover closed
Material properties
- Material (contacts) Copper
- Surface (contacts) Silver plated
- Material (hood/housing) Polyamide (PA)
- Colour (hood/housing) RAL 9005 (jet black)
- Material flammability class acc. to UL 94 V-0
Specifications and approvals
-
Specifications
IEC 61373 Category 1 Class BEN 45545-2 Hazard Level HL1-HL3UL 4128UL 1977TÜV 2PfG 2740
- Approvals CE
Commercial data
- Packaging size 1
- Net weight 160.5 g
- Country of origin China
- GTIN 5713141118071
- eCl@ss 27440202 Shell for industrial connectors
