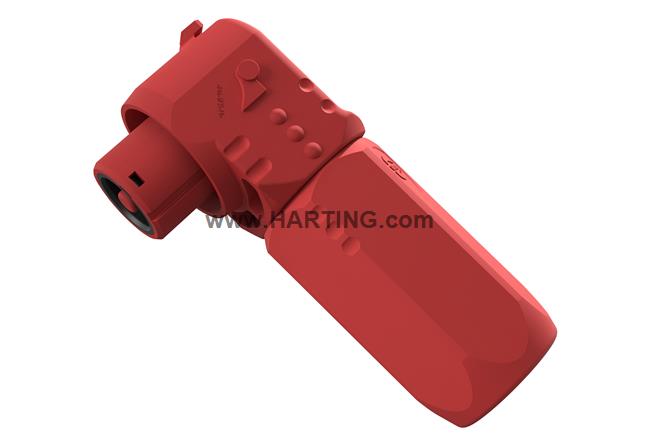

Resumen de caracterísiticas
Capota
Acodado
Enclave único
Material (capota/base): Poliamida (PA)
RAL 3001 (rojo señal)
Detalles del producto
Identification
- Category Hoods / Housings
- Series Han® S
- Identification Han® S 450 Plus
- Type of hood/housing Hood
- Description of hood/housing Angled
Version
- Termination method Crimp termination
- Number of contacts 1
- Coding C5 (front)
- Locking type Single locking lever
- Field of application Energy Storage Systems
- Details Please order suitable rubber sleeve separately when cable diameter is out of range.
Technical characteristics
- Conductor cross-section (mm²) 150 mm²
- Conductor cross-section (kcmil) 300 kcmil
- Rated current 400 A
- Rated voltage 2,000 V
- Rated impulse voltage 15 kV
- Pollution degree 3
- Overvoltage category III
- Insulation resistance >109 Ω @ 2500 V DC
- Contact resistance ≤ 0.3 mΩ
- Tightening torque 5 Nm Cable gland
- Limiting temperature -40 ... +125 °C
- Note on the limiting temperature For use as a connector according to IEC 61984.
- Number of relockings ≤ 500
-
Degree of protection acc. to IEC 60529
IP67 / IP69K mated conditionIP67 unmated condition & cover closed
- Cable diameter 20.4 ... 21.6 mm
Material properties
- Material (contacts) Copper
- Surface (contacts) Silver plated
- Material (hood/housing) Polyamide (PA)
- Colour (hood/housing) RAL 3001 (signal red)
- Material flammability class acc. to UL 94 V-0
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Not contained
Specifications and approvals
-
Specifications
IEC 61373 Category 1 Class BEN 45545-2 Hazard Level HL1-HL3UL 4128UL 1977TÜV 2PfG 2740
- Approvals CE
Commercial data
- Packaging size 1
- Net weight 215.3 g
- Country of origin China
- GTIN 5713141158367
- eCl@ss 27440202 Shell for industrial connectors
