Resumen de caracterísiticas

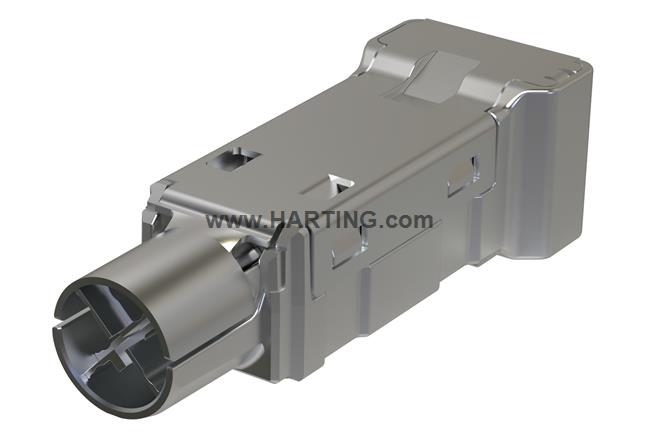

Módulo Han® GigaBit
Aislante
Terminación de engaste
Hembra
Contactos: 8 + apantallamiento
Corriente nominal: 5 A
Policarbonato (PC)
RAL 7032 (gris guijarro)
Detalles del producto
Identification
- Category Inserts
- Type of module Han® Gigabit module
- Description of the module Insert
Version
- Termination method Crimp termination
- Gender Male
- Number of contacts 8
- further contacts + shielding
-
Details
Please order crimp contacts separately.Please order Carrier Cube separately.
- Details Not suitable for hoods/housings low construction as well as Han-Modular® Eco, Han-Modular® Compact and Han-Modular® Twin.
Technical characteristics
- Conductor cross-section (mm²) 0.08 ... 0.25 mm²
- Conductor cross-section (AWG) AWG 28 ... AWG 23
- Wire outer diameter ≤1.4 mm
- Rated current 0.5 A
- Rated voltage 32 V
- Rated impulse voltage 0.8 kV
- Pollution degree 3
- Transmission characteristics Cat. 6A Class EA up to 500 MHz
-
Data rate
10 Mbit/s 100 Mbit/s 1 Gbit/s 2.5 Gbit/s 5 Gbit/s 10 Gbit/s
- Contact resistance, shielding ≤ 100 mΩ
- Limiting temperature -40 ... +85 °C
- Mating cycles ≥ 500
Material properties
- Material (insert) Liquid crystal polymer (LCP)
- Material (shielding) Zinc die-cast, nickel-plated
- Material flammability class acc. to UL 94 V-0
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Yes
- California Proposition 65 substances Nickel
- Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
-
Requirement set with Hazard Levels
R22 (HL 1-3)R23 (HL 1-3)
Specifications and approvals
-
Specifications
IEC 60664-1IEC 61984
Commercial data
- Packaging size 1
- Country of origin Germany
- European customs tariff number 85389099
- eCl@ss 27440218 Module for industrial connectors (data)
