Resumen de caracterísiticas
Base cable a cable
Tamaño: L32 B
Perfil alto
Enclave doble
Policarbonato (PC), Acero inoxidable
Entrada superior
1x M40
Material (capota/base): Fundición de aluminio
Recubierto de polvo
RAL 7037 (gris polvo)
Material (junta): NBR
Detalles del producto

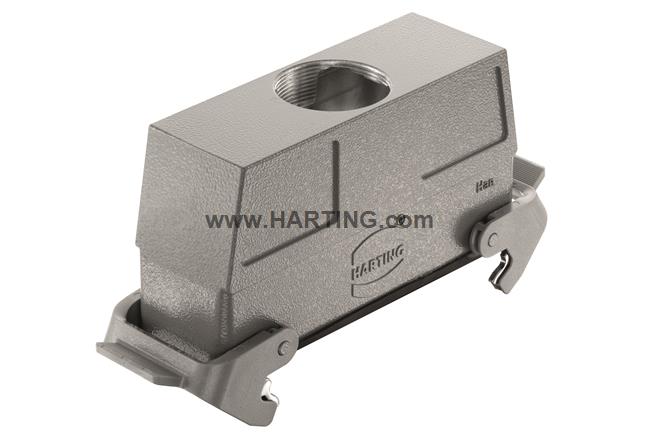

Identification
- Category Hoods / Housings
- Series of hoods/housings Han® B
- Type of hood/housing Cable to cable housing
- Type High construction
Version
- Size L32 B
- Version Entrada superior
- Number of cable entries 1
- Cable entry 1x M40
- Locking type Double locking lever
- Han-Easy Lock® Yes
- Field of application Capotas/bases estándar para conectores industriales
Technical characteristics
- Limiting temperature -40 ... +125 °C
- Note on the limiting temperature Para uso como conector de acuerdo con IEC 61984.
- Mating cycles ≥ 500
- Degree of protection acc. to IEC 60529 IP65
-
Type rating acc. to UL 50 / UL 50E
44X12
Material properties
- Material (hood/housing) Fundición de aluminio
- Surface (hood/housing) Recubierto de polvo
- Colour (hood/housing) RAL 7037 (gris polvo)
- Material (seal) NBR
-
Material (locking)
Policarbonato (PC)Acero inoxidable
- Colour (locking) RAL 7037 (gris polvo)
- Material flammability class acc. to UL 94 (locking levers) V-0
- RoHS conforme
- ELV status conforme
- China RoHS e
- REACH Annex XVII substances No incluido
- REACH ANNEX XIV substances No incluido
- REACH SVHC substances No incluido
- California Proposition 65 substances No incluido
- Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
-
Requirement set with Hazard Levels
R1 (HL 1-3)R7 (HL 1-3)
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 320 g
- Country of origin China
- European customs tariff number 85389099
- GTIN 5713140165281
- eCl@ss 27440202 Shell for industrial connectors
- ETIM EC000437
- UNSPSC 24.0 39121466
