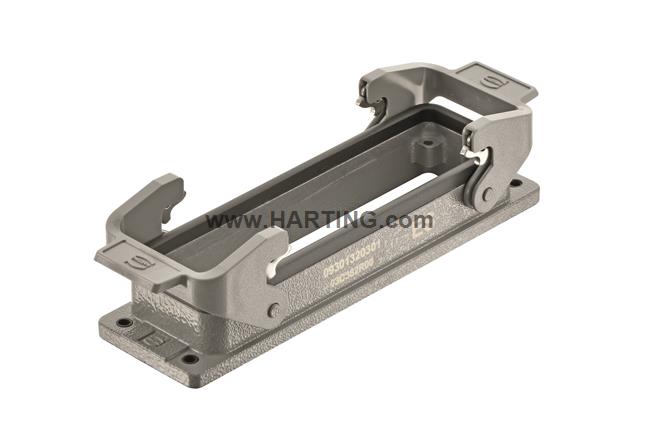

Resumen de caracterísiticas
Base montaje tipo pasamuros
Tamaño: L32 B
Construcción baja
Enclave doble
Policarbonato (PC), Acero inoxidable
Material (capota/base): Fundición de aluminio
Recubierto de polvo
RAL 7037 (gris polvo)
Material (junta): NBR
Detalles del producto
Identification
- Category Hoods / Housings
- Series of hoods/housings Han® B
- Type of hood/housing Bulkhead mounted housing
- Type Low construction
Version
- Size L32 B
- Locking type Podwójna klamra ryglująca
- Han-Easy Lock® Yes
- Field of application Standardowe obudowy wtyczek/gniazd dla złączy przemysłowych
Technical characteristics
- Tightening torque 2,5 Nm Śruby mocujące M5
- Limiting temperature -40 ... +125 °C
- Note on the limiting temperature Do stosowania jako złącze zgodnie z normą IEC 61984.
- Mating cycles ≥ 500
- Degree of protection acc. to IEC 60529 IP65
-
Type rating acc. to UL 50 / UL 50E
44X12
Material properties
- Material (hood/housing) Odlew aluminiowy
- Surface (hood/housing) Malowane proszkowo
- Colour (hood/housing) RAL 7037 (szary)
- Material (seal) NBR
-
Material (locking)
Poliwęglan (PC)Stal nierdzewna
- Colour (locking) RAL 7037 (szary)
- Material flammability class acc. to UL 94 (locking levers) V-0
- RoHS zgodny
- ELV status zgodny
- China RoHS e
- REACH Annex XVII substances Niezawarte
- REACH ANNEX XIV substances Niezawarte
- REACH SVHC substances Tak
- REACH SVHC substances Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- ECHA SCIP number a4a9de28-6060-4c0d-b79b-5842f7db41be
- California Proposition 65 substances Niezawarte
- Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
-
Requirement set with Hazard Levels
R1 (HL 1-3)R7 (HL 1-3)
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 0.167 g
- Country of origin China
- European customs tariff number 85389099
- GTIN 5713140163218
- eCl@ss 27440202 Shell for industrial connectors
- ETIM EC000437
- UNSPSC 24.0 39121466
