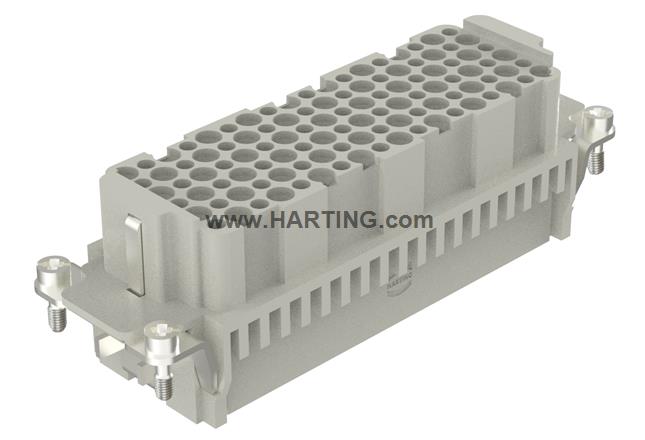

Resumen de caracterísiticas
Aislantes
Terminación de engaste
Hembra
Policarbonato (PC)
RAL 7032 (gris guijarro)
Corriente nominal: 1.5 A
Tamaño: 24 B
Contactos: 108
Sección de conductor: 0.14 ... 2.5 mm²
Detalles del producto
Identification
- Category 插芯
- Series Han® Ex
Version
- Termination method 压接针
- Gender Hembra
- Size 24 B
- Number of contacts 108
- PE contact Yes
- Details Por favor, pida los contactos ponchables por separado.
- Details ATTENTION! Only to be used with Han® Ex hoods and housings!
Technical characteristics
- Conductor cross-section 0.14 ... 2.5 mm²
- Rated current 1.5 A
- Rated voltage 30 V
- Pollution degree 3
- Insulation resistance >1010 Ω
- Limiting temperature -20 ... +40 °C
- Note on the limiting temperature 最高 +70°C（在 T4 下）
- Mating cycles ≥ 500
Material properties
- Material (insert) 聚碳酸酯 (PC)
- Colour (insert) RAL 7032（卵石灰）
- Material flammability class acc. to UL 94 V-0
Specifications and approvals
-
Specifications
IEC 60079-0IEC 60079-11IEC 61984IEC 60664-1
Commercial data
- Packaging size 1
- Country of origin 罗马尼亚
- European customs tariff number 85366990
- eCl@ss 27440205 工业插头连接器接触部分
- ETIM EC000438
- UNSPSC 24.0 39121522
