Resumen de caracterísiticas

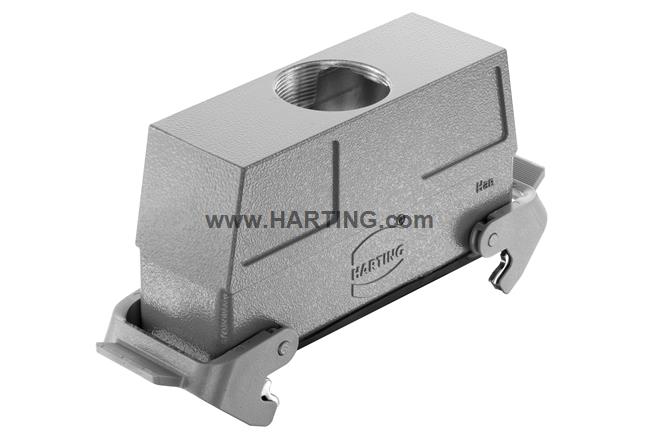

Base cable a cable
Tamaño: L32 B
Perfil alto
Enclave doble
Policarbonato (PC), Acero inoxidable
Entrada superior
1x Pg 29
Material (capota/base): Fundición de aluminio
Recubierto de polvo
RAL 7037 (gris polvo)
Material (junta): NBR
Este producto ya no se puede solicitar. Por favor, contacte con su distribuidor local.
Detalles del producto
Identification
- Category Hoods / Housings
- Series of hoods/housings Han® B
- Type of hood/housing Cable to cable housing
- Type High construction
Version
- Size L32 B
- Version Top entry
- Number of cable entries 1
- Cable entry 1x Pg 29
- Locking type Double locking lever
- Han-Easy Lock® Yes
- Field of application Standard hoods/housings for industrial connectors
Technical characteristics
- Limiting temperature -40 ... +125 °C
- Note on the limiting temperature For use as a connector according to IEC 61984.
- Mating cycles ≥ 500
- Degree of protection acc. to IEC 60529 IP65
-
Type rating acc. to UL 50 / UL 50E
44X12
Material properties
- Material (hood/housing) Aluminium die-cast
- Surface (hood/housing) Powder-coated
- Colour (hood/housing) RAL 7037 (dust grey)
- Material (seal) NBR
-
Material (locking)
Polycarbonate (PC)Stainless steel
- Colour (locking) RAL 7037 (dust grey)
- Material flammability class acc. to UL 94 (locking levers) V-0
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 0.01 g
- Country of origin China
- GTIN 5713140832978
- eCl@ss 27440202 Shell for industrial connectors
- ETIM EC000437
- UNSPSC 24.0 39121466
