Resumen de caracterísiticas

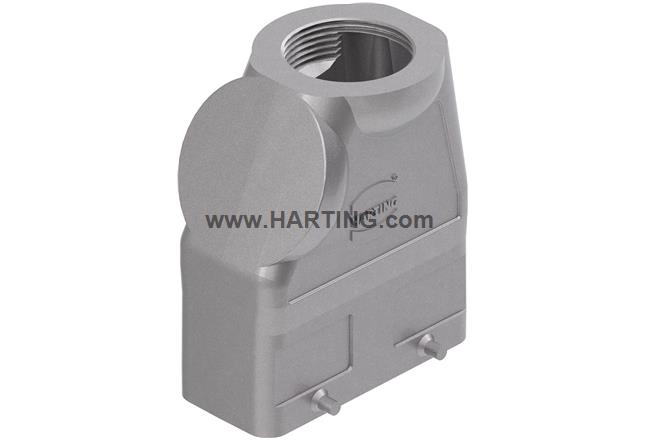

Hood
Special type
Size: 16 B
High construction
Double locking lever
Top entry
1x M40
Material (hood/housing): Aluminium die-cast
Uncoated
Unpainted
Detalles del producto
Identification
- Category Hoods/Housings
-
Series of hoods/housings
Han® EMC/BHan® High Temp
- Type of hood/housing Hood
- Description of hood/housing Special type
- Type High construction
Version
- Size 16 B
- Version Top entry
- Number of cable entries 1
- Cable entry 1x M40
- Locking type Double locking lever
- Field of application Hoods/Housings for higher EMC requirements
Technical characteristics
-
Limiting temperature
-40 ... +125 °C-40 ... +200 °C With Han® High Temp components
- Note on the limiting temperature For use as a connector according to IEC 61984.
-
Degree of protection acc. to IEC 60529
IP65IP66
-
Type rating acc. to UL 50 / UL 50E
412
Material properties
- Material (hood/housing) Aluminium die-cast
- Surface (hood/housing) Uncoated
- Colour (hood/housing) Unpainted
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 1 g
- Country of origin China
- GTIN 5713140436336
- ETIM EC000437
- eCl@ss 27440202 Shell for industrial connectors
