Por favor no utilice más este producto para nuevos diseños.
Puede utilizar las alternativas o sucesores que se muestran debajo.

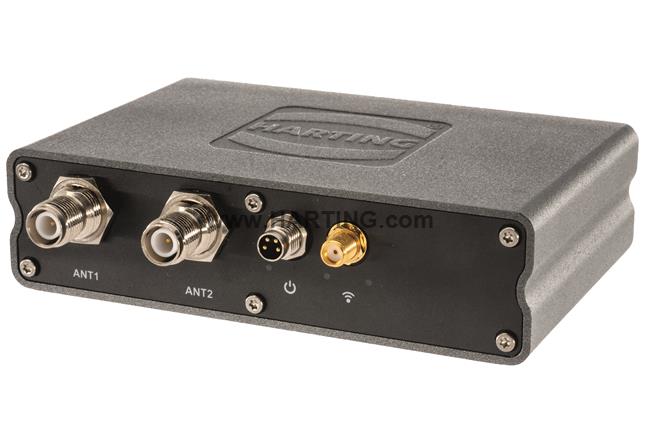

La imagen se muestra con fines ilustrativos exclusivamente. Consulte la descripción del producto.
Go to:
- Series Ha-VIS RFID
- Element Reader
- Specification RF-R300-W
-
Features
WLAN-capableDesigned for the harsh industrial environmentTested according industry standardsReady for software customisationHa-VIS Middleware compatibleOPC UA for AutoID CompanionModbus/TCP communicationGS1® ALE 1.1 based MiddlewareFor configuration, a WiFi antenna is required
- Processor 1 GHz ARM
-
Memory
Up to 32 GB Flash (via Micro SD Card)1 GB RAM4 GB eMMC
- Operating system Linux (Kernel 3.x.x)
- Fixing DIN rail mounting kit
-
Diagnostic display
LEDs to display connection statusLEDs to display operating state
- Supply voltage 24 V DC
-
Interfaces
WiFi: 802.11a/b/g/nWPA/WPA2 EnterpriseBluetooth Low Energy (BLE) 4
-
Protocol
Modbus/TCP for an easy PLC connectionEPC Class 1 Gen2 (ISO 18000-6c)Embedded middleware functionality based on the GS1® ALE 1.1 standardOPC UA for AutoID CompanionLLRP (Low Level Reader Protocol, worldwide standardised)
-
Termination method
reader internally multiplexed2 x RP-TNC connector (50 Ohm)
- Operating temperature -20 ... +50 °C
- Storage temperature -25 ... +85 °C
- Relative humidity 5 ... 95 % Non-condensing
- Degree of protection acc. to IEC 60529 IP67
- Frequency 865 ... 928 MHz
- Transmitting power 0.5 W
- Material (hood/housing) Aluminium
- Surface (hood/housing) Powder-coated
- Length 132 mm
- Width 104 mm
- Height 35 mm
-
Specifications
EN 301489FCC 47 FCR Part 15IC RSS-GEN, RSS-210EN 302208IEC 60068-2-27EN 50364IEC 60068-2-6EN 60950
- Packaging size 1
- Net weight 640 g
- Country of origin Germany
- European customs tariff number 84719000
- eCl@ss 90909090 Interim classification (unspecified)
