N.º de referencia: 20 91 105 2101

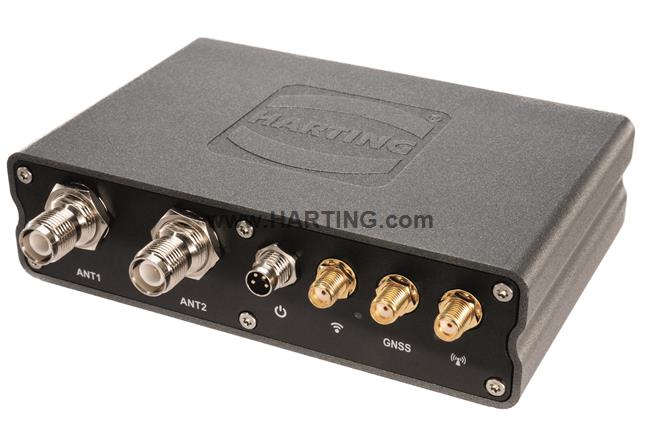

Ha-VIS RFID RF-R300-M
Ha-VIS RFID RF-R300-M

La imagen se muestra con fines ilustrativos exclusivamente. Consulte la descripción del producto.

Resumen de caracterísiticas
Reader
RF-R300-M
Notas
Comparar
Este producto ya no se puede solicitar. Por favor, contacte con su distribuidor local.
N.º de referencia: 20 91 105 2101
Ha-VIS RFID RF-R300-M
Notas
Comparar
All functionalities, price and availability after sign in.
Añadir a la lista de deseos
Productos combinables NUEVO
Accessories
1
Detalles del producto
Identification
  • Series Ha-VIS RFID
  • Element Reader
  • Specification RF-R300-M
  • Features
    2G/3G/4G communication and WLAN-capable (2G only in Europe)
    Designed for the harsh industrial environment
    Tested according industry standards
    Ready for software customisation
    Ha-VIS Middleware compatible
    OPC UA for AutoID Companion
    Modbus/TCP communication
    GS1® ALE 1.1 based Middleware
    For configuration, a WiFi antenna is required
Version
  • Processor 1 GHz ARM
  • Memory
    1 GB RAM
    4 GB eMMC
    Up to 32 GB Flash (via Micro SD Card)
  • Operating system Linux (Kernel 3.x.x)
  • Fixing DIN rail mounting kit
  • Diagnostic display
    LEDs to display operating state
    LEDs to display connection status
Termination data
  • Supply voltage 24 V DC
  • Interfaces
    GSM: 2G/3G/4G
    WiFi: 802.11a/b/g/n
    WPA/WPA2 Enterprise
    Bluetooth Low Energy (BLE) 4
    GNSS (GPS)
  • Protocol
    EPC Class 1 Gen2 (ISO 18000-6c)
    LLRP (Low Level Reader Protocol, worldwide standardised)
    OPC UA for AutoID Companion
    Modbus/TCP for an easy PLC connection
    Embedded middleware functionality based on the GS1® ALE 1.1 standard
  • Termination method
    2 x RP-TNC connector (50 Ohm)
    reader internally multiplexed
Technical characteristics
  • Operating temperature -20 ... +45 °C
  • Storage temperature -25 ... +85 °C
  • Relative humidity 5 ... 95 % Non-condensing
  • Degree of protection acc. to IEC 60529 IP67
  • Frequency 865 ... 928 MHz
  • Transmitting power ‌0.5 W
Material properties
  • Material (hood/housing) Aluminium
  • Surface (hood/housing) Powder-coated
  • Length 132 mm
  • Width 104 mm
  • Height 35 mm
  • RoHS compliant with exemption
  • RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
  • ELV status compliant with exemption
  • China RoHS 50
  • REACH Annex XVII substances Not contained
  • REACH ANNEX XIV substances Not contained
  • REACH SVHC substances Yes
  • REACH SVHC substances Lead
  • California Proposition 65 substances Yes
  • California Proposition 65 substances
    Lead
    Nickel
Specifications and approvals
  • Specifications
    EN 301489
    EN 302208
    IEC 60068-2-27
    EN 50364
    IEC 60068-2-6
    FCC 47 FCR Part 15
    RSS-210
Commercial data
  • Packaging size 1
  • Net weight 640 g
  • Country of origin Germany
  • European customs tariff number 84719000
  • eCl@ss 90909090 Interim classification (unspecified)
