Resumen de caracterísiticas

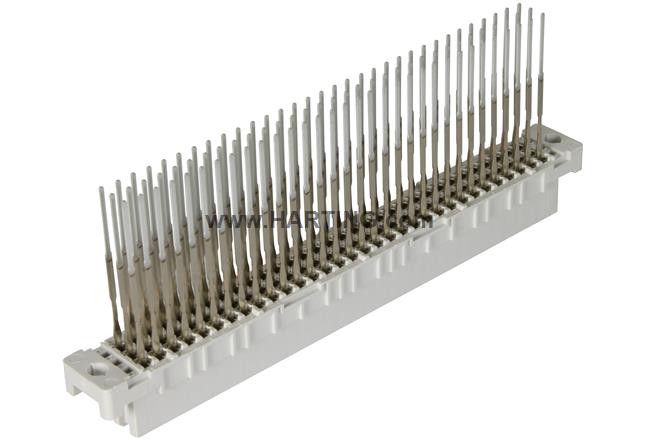

Female connector
Wave soldering termination
Rated current: 2 A
Contacts: 96
Straight
Copper alloy
Noble metal over Ni Mating side, Sn over Ni Termination side
Performance level: 2, acc. to IEC 60603-2
Coding: Coding with loss of contacts
PCB fixing: With fixing flange
Thermoplastic resin, glass-fibre filled
RAL 7032 (pebble grey)
Detalles del producto
Identification
- Category Connectors
- Series DIN 41612
- Identification Type C
- Element Female connector
- Description of the contact Straight
Versiune
- Termination method Wave soldering termination
-
Connection type
Motherboard to daughtercardMezzanine
- Number of contacts 96
- Contact configuration Rows a, b and c, positions 1, 2, ... , 31, 32
- Lungime terminaţie 24.8 mm
- Coding Coding with loss of contacts
- PCB fixing With fixing flange
Caracteristici tehnice
- Rânduri de contacte 3
- Spaţiu între contacte (partea terminaţiilor) 2.54 mm
- Spaţiu între contacte (parte de cuplare) 2.54 mm
- Curent nominal 2 A
- Curent nominal Rated current measured at 20 °C, see derating curve for details
- Distanţă în aer ≥ 1 mm
- Distanţa în izolator ≥ 1 mm
- Rezistenţă izolaţie >1012 Ω
- Rezistenţă de contact ≤ 20 mΩ
- Temperatura de limitare -55 ... +125 °C
- Forţă de inserţie ≤ 90 N
- Forţă de extragere ≤ 60 N
-
Nivel de performanţă
2acc. to IEC 60603-2
- Cicluri de cuplare ≥ 400
- Tensiune de test Ur.m.s. 1 kV
- Grup izolaţie IIIa (175 ≤ CTI < 400)
- Hot plugging No
Proprietăţi material
- Material (inserţie) Thermoplastic resin, glass-fibre filled
- Culoare (inserţie) RAL 7032 (pebble grey)
- Material (contacte) Copper alloy
-
Suprafaţă (contacte)
Noble metal over Ni Mating sideSn over Ni Termination side
- Clasa de inflamabilitate a materialului conform UL 94 V-0
- RoHS compliant
- stare ELV compliant
- China RoHS e
- Substanţe REACH Anexa XVII Not contained
- Substanţe REACH ANEXA XIV Not contained
- Substanţe REACH SVHC Not contained
- Propunerea din California 65 de substanțe Not contained
Specificaţii şi omologări
Commercial data
- Packaging size 20
- Country of origin Germany
- European customs tariff number 85366990
- eCl@ss 27460201 PCB connector (board connector)
- ETIM EC002637
- UNSPSC 24.0 39121415
