Part number: 09 45 151 1570

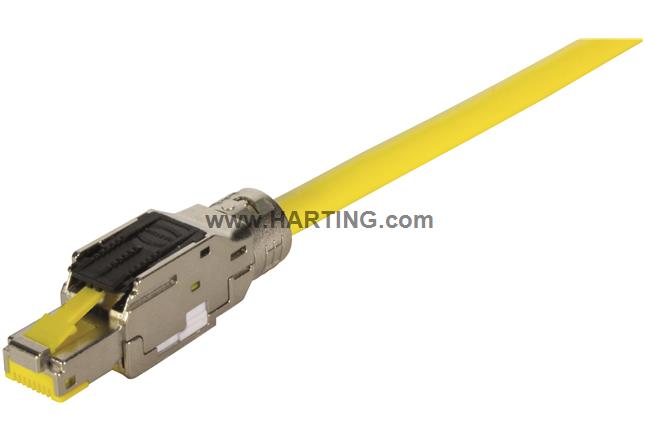

RJI MF RJ45 plug Cat6A, 8p IDC straight
RJI MF RJ45 plug Cat6A, 8p IDC straight

Image is for illustration purposes only. Please refer to product description.

Properties Overview
Connectors
Connector Multi Feature RJ45, Straight
IDC termination
Rated current: ‌1.76 A
Contacts: 8
Copper alloy
Au over Ni Mating side, Sn over Ni Termination side
Material: Zinc die-cast
Nickel plated
Degree of protection: IP20
Notes
Compare
NEW
Derating tool
Part number: 09 45 151 1570
RJI MF RJ45 plug Cat6A, 8p IDC straight
Notes
Compare
NEW
Derating tool
All functionalities, price and availability after sign in.
Add to Wishlist
Matching Products NEW
Combinables
54
Product Details
Identification
  • Category Connectors
  • Series of hoods/housings HARTING RJ Industrial®
  • Element Connector
  • Specification
    Multi Feature RJ45
    Straight
  • Features Suitable for all PoE versions
Version
  • Termination method IDC termination
  • Shielding Fully shielded, 360° shielding contact
  • Number of contacts 8
Technical characteristics
  • Conductor cross-section
    0.12 ... 0.32 mm² Stranded
    0.12 ... 0.32 mm² Solid
  • Conductor cross-section
    AWG 26/7 ... AWG 22/7 Stranded
    AWG 26/1 ... AWG 22/1 Solid
  • Wire outer diameter 0.8 ... ‌1.6 mm
  • Rated current ‌ 1.76 A
  • Rated voltage
    ‌ 50 V AC
    ‌ 60 V DC
  • Transmission characteristics Cat. 6A Class EA up to 500 MHz
  • Data rate
    ‌ 10 Mbit/s
    ‌ 100 Mbit/s
    ‌ 1 Gbit/s
    ‌ 2.5 Gbit/s
    ‌ 5 Gbit/s
    ‌ 10 Gbit/s
  • Insulation resistance > 5 x 109 Ω
  • Contact resistance ≤ 20 mΩ
  • Contact resistance, shielding ≤ 100 mΩ
  • Limiting temperature -40 ... +85 °C
  • Relative humidity 95 % Non-condensing (operation)
  • Insertion force ≤ 25 N
  • Withdrawal force ≤ 25 N
  • Mating cycles ≥ 750
  • Degree of protection acc. to IEC 60529 IP20
  • Cable diameter 4.5 ... 9 mm
  • Test voltage UDC
    1 kV (contact-contact)
    1.5 kV (contact-ground)
  • Vibration resistance
    10-500 Hz, 0.35 mm / 50 m/s², 2h/axis
    5.72 m/s² acc. to IEC 61373 Category 1 Class B
  • Shock resistance 50 g / 30 ms, 3 shocks / axis and direction acc. to IEC 61373 Category 1 Class B
Material properties
  • Material (insert) Polycarbonate (PC)
  • Material (contacts) Copper alloy
  • Surface (contacts)
    Au over Ni Mating side
    Sn over Ni Termination side
  • Material (hood/housing) Zinc die-cast
  • Surface (hood/housing) Nickel plated
  • Colour (hood/housing) Silver
  • RoHS compliant
  • ELV status compliant
  • China RoHS e
  • REACH Annex XVII substances Not contained
  • REACH ANNEX XIV substances Not contained
  • REACH SVHC substances Not contained
  • California Proposition 65 substances Not contained
Specifications and approvals
  • Specifications
    IEC 60603-7 Mating face
    ISO/IEC 11801
    EN 50173-1
  • UL / CSA
    UL 1977 ECBT2.E102079
    CSA-C22.2 No. 182.3 ECBT8.E102079
  • Approvals DNV GL
  • PROFINET Yes
Commercial data
  • Packaging size 1
  • Net weight 15 g
  • Country of origin Latvia
  • European customs tariff number 85366990
  • GTIN 5713140224339
  • ETIM EC002636
  • eCl@ss 27440114 Rectangular connector (for field assembly)
