Part number: 09 14 003 3151

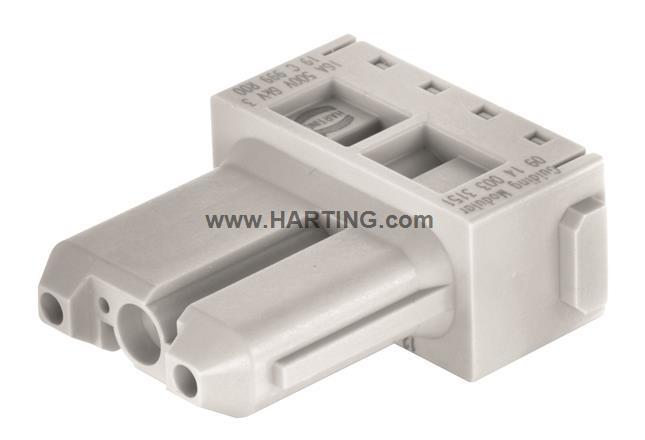

Han Guiding Relay module, female
Han Guiding Relay module, female

Image is for illustration purposes only. Please refer to product description.

Properties Overview
Han® Guiding module
Relay module
Notes
Compare
Load in configurator
All functionalities, price and availability after sign in.
Part number: 09 14 003 3151
Han Guiding Relay module, female
Notes
Compare
Load in configurator
All functionalities, price and availability after sign in.
Add to Wishlist
Matching Products NEW
Contacts
15
Tools
2
Product Details
Identification
  • Category Modules
  • Series Han-Modular®
  • Type of module Han® Guiding module
  • Size of the module Single module
  • Description of the module Relay module
  • Features 2 contacts with relay function (last mate - first break)
Version
  • Termination method Crimp termination
  • Gender Female
  • Number of contacts 3
  • Details Please order crimp contacts separately.
Technical characteristics
  • Conductor cross-section 0.14 ... 4 mm²
  • Rated current ‌ 16 A
  • Rated voltage 500 V
  • Rated impulse voltage 6 kV
  • Pollution degree 3
  • Insulation resistance >1010 Ω
  • Limiting temperature -40 ... +125 °C
  • Mating cycles ≥ 500
  • Lock-in range ± 4 mm
Material properties
  • Material (insert) Polycarbonate (PC)
  • Colour (insert) RAL 7032 (pebble grey)
  • Material flammability class acc. to UL 94 V-0
  • RoHS compliant
  • ELV status compliant
  • China RoHS e
  • REACH Annex XVII substances Not contained
  • REACH ANNEX XIV substances Not contained
  • REACH SVHC substances Not contained
  • California Proposition 65 substances Not contained
  • Fire protection on railway vehicles EN 45545-2 (2020-08)
  • Requirement set with Hazard Levels
    R22 (HL 1-3)
    R23 (HL 1-3)
Specifications and approvals
  • Specifications
    EN 60664-1
    IEC 61984
Commercial data
  • Packaging size 2
  • Net weight 9.2 g
  • Country of origin China
  • European customs tariff number 85389099
  • eCl@ss 90909090 Interim classification (unspecified)
