Part number: 09 10 000 5300

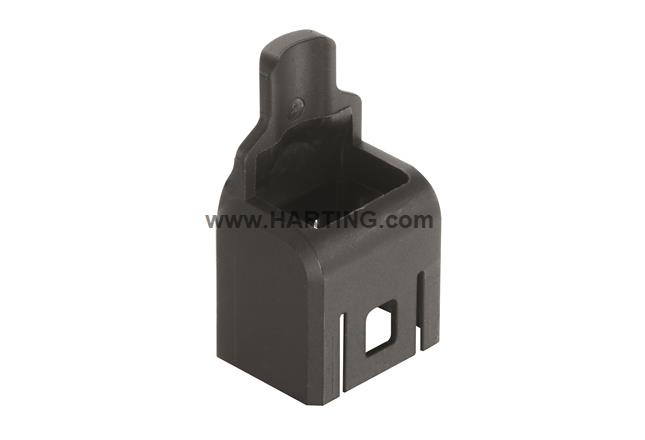

Han 1A-strain relief
Han 1A-strain relief

Image is for illustration purposes only. Please refer to product description.

Properties Overview
Cable adapter
With strain relief
Size: 1 A
Notes
Compare
Load in configurator
Free Sample
All functionalities, price and availability after sign in.
Part number: 09 10 000 5300
Han 1A-strain relief
Notes
Compare
Load in configurator
Free Sample
All functionalities, price and availability after sign in.
Add to Wishlist
Matching Products NEW
Combinables
3
Inserts
64
Product Details
Identification
  • Category Accessories
  • Series Han® 1A
  • Type of hood/housing Cable adapter
  • Description of hood/housing With strain relief
Version
  • Size 1 A
  • Version Top entry
  • Cable entry 1x
  • Details
    A Han® 1A configuration that only consists of inserts (with or without strain relief, 09 10 000 5300) is an unenclosed connector. In this case protection against electric shock must be provided by the installation methods of the user.
    Only for use with single wires according to CSA approval.
Technical characteristics
  • Limiting temperature -30 ... +90 °C
  • Number of relockings < 10
  • Degree of protection acc. to IEC 60529 IP20
Material properties
  • Material (hood/housing) Polyamide (PA)
  • Colour (hood/housing) RAL 9005 (jet black)
  • Material (seal) TPE
  • Colour (seal) Yellow
  • Material flammability class acc. to UL 94 V-0
  • RoHS compliant
  • ELV status compliant
  • China RoHS e
  • REACH Annex XVII substances Not contained
  • REACH ANNEX XIV substances Not contained
  • REACH SVHC substances Not contained
Specifications and approvals
  • Specifications
    EN 45545-2 R22: HL1, HL2, HL3
    EN 45545-2 R23: HL1, HL2, HL3
    EN 45545-2 R24: HL1, HL2, HL3
    IEC 61373 Category 1 Class B
  • UL / CSA
    UL 1977 ECBT2.E235076
    CSA-C22.2 No. 182.3 ECBT8.E235076
    Please contact your local HARTING subsidiary for further information.
Commercial data
  • Packaging size 1
  • Net weight 5 g
  • Country of origin Germany
  • European customs tariff number 85366990
  • eCl@ss 27440392 Connector (accessories)
