Han 1A-HBM

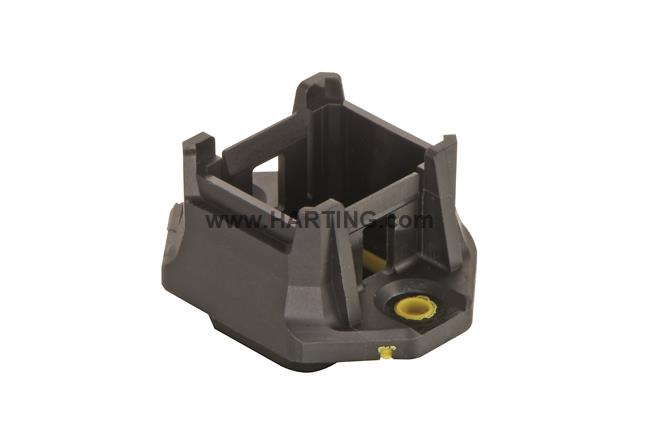

Image is for illustration purposes only. Please refer to product description.

Han 1A-HBM

Bulkhead mounted housings, Straight, Size: 1 A, Material (hood/housing): Polyamide, RAL 9005 (jet black), Material (seal): TPE, Degree of protection: IP65

Part number:  09 10 000 0300

Simply configure your entire connector!

Combinable products
  • Category Hoods/Housings
  • Series Han® 1 A
  • Type of hood/housing Bulkhead mounted housings
  • Description of hood/housing Straight
  • Size 1 A
  • Details Use 2x fixing screws M3
  • Limiting temperature -30 ... +90 °C
  • Tightening torque 0.3 Nm Screws M3
  • Number of relockings < 10
  • Degree of protection acc. to IEC 60529 IP65
  • Material (hood/housing) Polyamide
  • Colour (hood/housing) RAL 9005 (jet black)
  • Material (seal) TPE
  • Colour (seal) Yellow
  • Material flammability class acc. to UL 94 V-0
  • RoHS compliant
  • ELV status compliant
  • China RoHS e
  • REACH Annex XVII substances No
  • REACH ANNEX XIV substances No
  • REACH SVHC substances No
  • Specifications
    EN 45545-2 R22: HL1, HL2, HL3
    EN 45545-2 R23: HL1, HL2, HL3
    EN 45545-2 R24: HL1, HL2, HL3
    IEC 61373 Category 1 Class B
  • Approvals DNV GL
  • Packaging size 1
  • Net weight 7 g
  • Country of origin Germany
  • European customs tariff number 85366990
  • eCl@ss 27440202 Shell for industrial connectors
