Properties Overview

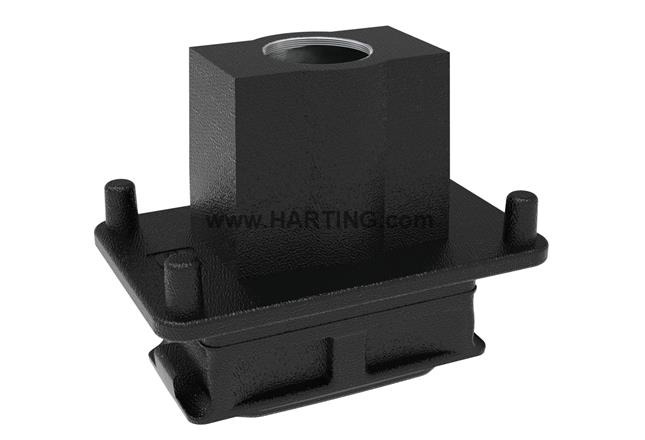

パネルフィードスルーハウジング
内側取付け用
サイズ: 10 B
ねじロック
ステンレススチール
トップエントリー
1x M32
材質 (フード/ハウジング): アルミダイカスト, 耐腐食
粉体塗装
RAL 9005 (ジェットブラック)
材質 (シール): NBR
製品詳細
Identification
- Category Hoods / Housings
- Series of hoods/housings Han® HPR Compact
- Type of hood/housing Panel feed through housing
- Description of hood/housing for mounting from inside
Version
- Size 10 B
- Version Top entry
- Number of cable entries 1
- Cable entry 1x M32
- Locking type Screw locking
- Field of application Hoods/housings for harsh outdoor environments
Technical characteristics
- Tightening torque (screw locking) 4 Nm
- Tightening torque 6 Nm Fixing screws
- Limiting temperature -40 ... +125 °C
- Note on the limiting temperature For use as a connector according to IEC 61984.
-
Degree of protection acc. to IEC 60529
IP65IP68IP6K9K acc. to ISO 20653
-
Type rating acc. to UL 50 / UL 50E
44X12
- Thickness of the panel ≥2 mm
Material properties
-
Material (hood/housing)
Aluminium die-castCorrosion resistant
- Surface (hood/housing) Powder-coated
- Colour (hood/housing) RAL 9005 (jet black)
- Material (seal) NBR
- Material (locking) Stainless steel
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Yes
- California Proposition 65 substances Nickel
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 561.4 g
- Country of origin China
- European customs tariff number 85389099
- GTIN 5713140324992
- eCl@ss 27440202 Shell for industrial connectors
- ETIM EC000437
- UNSPSC 24.0 39121466
