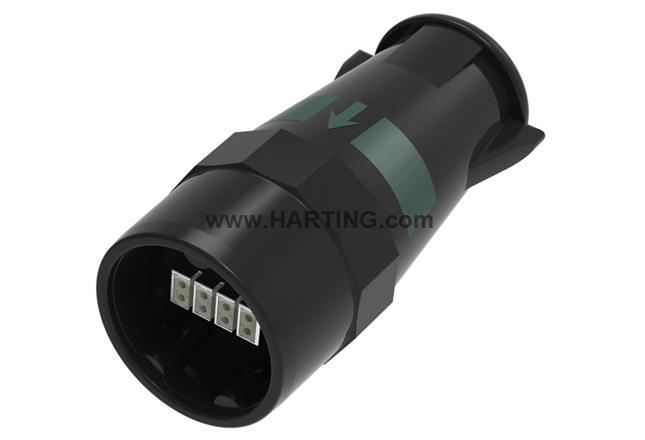

Resumen de caracterísiticas
Juegos de conectores
Macho
Terminación de engaste
Poliamida (PA)
Negro
Contactos: 8
Aleación de cobre Chapado en oro
Sección de conductor: 0.08 ... 0.21 mm²
Corriente nominal: 1 A
Poliamida (PA), Reforzado con fibra de vidrio
Grado de protección: IP67 / IP69 estado conectado
Detalles del producto
Identification
- Category Connector sets
- Series HARTING UIC
- Identification UIC IT
- Element Connector sets
Version
- Termination method Crimp termination
- Gender Male
- Number of contacts 8
- Number of cable entries 1
- Cable entry 1x M32
-
Details
Crimp contacts enclosed separatlyModule enclosed separatlyCable clamp enclosed separatly
Technical characteristics
- Conductor cross-section 0.08 ... 0.21 mm²
- Conductor cross-section [AWG] AWG 28 ... AWG 24
- Rated current 1 A
- Rated voltage 50 V
- Insulation resistance >107 Ω
- Contact resistance ≤ 4 mΩ
- Limiting temperature -40 ... +90 °C
- Mating cycles ≥ 10,000
- Degree of protection acc. to IEC 60529 IP67 / IP69 mated condition
Material properties
- Material (insert) Polyamide (PA)
- Colour (insert) Black
- Material (contacts) Copper alloy
- Surface (contacts) Gold plated
-
Material (hood/housing)
Polyamide (PA)Fibre-glass reinforced
-
Colour (hood/housing)
BlackRAL 6005 (moos green)
- Material (seal) Silicone
- Material flammability class acc. to UL 94 V-0
Specifications and approvals
-
Specifications
UIC 50558IRS 50558IEC 61373 Category 2IEC 60529
Commercial data
- Packaging size 1
- Net weight 310 g
- Country of origin India
- European customs tariff number 85366990
- eCl@ss 27440115 Circular connector (set)
- ETIM EC002635
- UNSPSC 24.0 39121413
