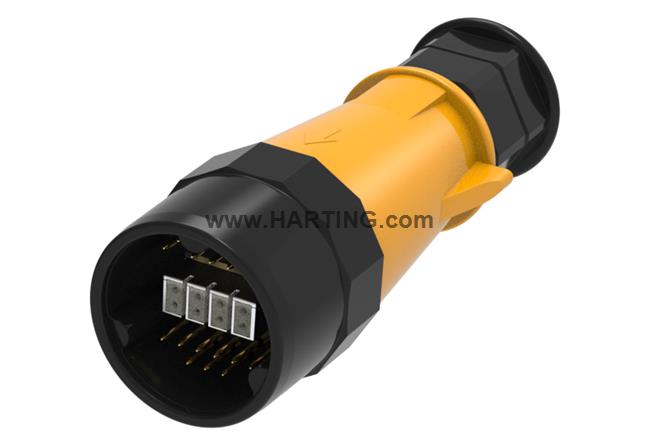

Resumen de caracterísiticas
Connector sets
Male
Crimp termination
Polyamide (PA)
Black
Contacts: 24
Copper alloy Gold plated
Conductor cross-section: 0.09 ... 0.52 mm² Data 0.14 ... 2.5 mm² Signal
Polyamide (PA), Fibre-glass reinforced
Degree of protection: IP67 / IP69 mated condition
Detalles del producto
Identification
- Category Connector sets
- Series HARTING UIC
- Identification UIC IT
- Element Connector sets
Version
- Termination method Crimp termination
- Gender Male
- Number of contacts 24
- Number of cable entries 1
- Cable entry 1x Integrated
-
Details
Crimp contacts enclosed separatlyModule enclosed separatlyCable clamp enclosed separatly
Technical characteristics
-
Conductor cross-section
0.08 ... 0.21 mm² Data1 mm² Signal
-
Conductor cross-section [AWG]
AWG 24 ... AWG 28 DataAWG 18 Signal
- Rated current (data) 1 A
- Rated voltage (data) 50 V
- Rated current (signal) 10 A
- Rated voltage (signal) 100 V
- Insulation resistance >107 Ω
- Contact resistance ≤ 4 mΩ
- Limiting temperature -40 ... +90 °C
- Mating cycles ≥ 10,000
- Degree of protection acc. to IEC 60529 IP67 / IP69 mated condition
- Clamping range 16.9 ... 18.5 mm
Material properties
- Material (insert) Polyamide (PA)
- Colour (insert) Black
- Material (contacts) Copper alloy
- Surface (contacts) Gold plated
-
Material (hood/housing)
Polyamide (PA)Fibre-glass reinforced
-
Colour (hood/housing)
BlackRAL 1003 (signal yellow)
- Material (seal) Silicone
- Material flammability class acc. to UL 94 V-0
- RoHS compliant with exemption
- RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status compliant with exemption
- China RoHS 50
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Yes
-
REACH SVHC substances
LeadPotassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
- California Proposition 65 substances Yes
- California Proposition 65 substances Lead
Specifications and approvals
-
Specifications
UIC 50558IRS 50558IEC 61373 Category 2IEC 60529
Commercial data
- Packaging size 1
- Net weight 180 g
- Country of origin India
- European customs tariff number 85366990
- ETIM EC002635
- eCl@ss 27440115 Circular connector (set)
