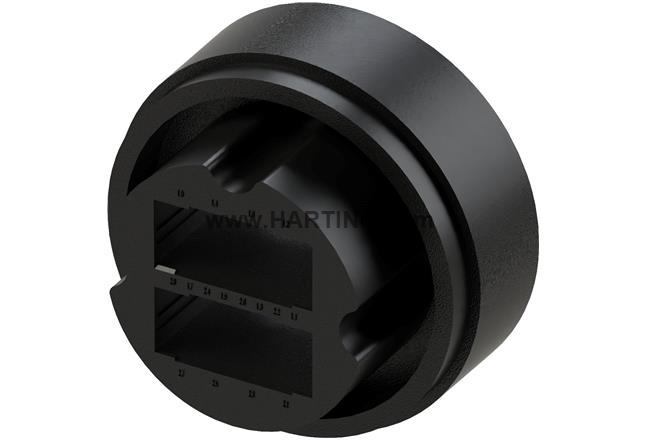

Resumen de caracterísiticas
Aislantes
Terminación de engaste
Hembra
Poliamida (PA)
Negro
Corriente nominal: 1 A
Contactos: 16
Sección de conductor: 0.08 ... 0.21 mm²
Detalles del producto
Identification
- Category Inserts
- Series HARTING UIC
- Identification UIC IT
Version
- Termination method Crimp termination
- Gender Female
- Number of contacts 16
-
Details
Please order crimp contacts separately.Please order moduls separately.
Technical characteristics
- Conductor cross-section 0.08 ... 0.21 mm²
- Conductor cross-section AWG 28 ... AWG 24
- Rated current 1 A
-
Rated voltage
50 V50 V
-
Transmission characteristics
Cat. 7A Class FA up to 1,000 MHzCat. 8 Class II up to 2000 MHz
-
Data rate
10 Mbit/s 100 Mbit/s 1 Gbit/s 2.5 Gbit/s 5 Gbit/s 10 Gbit/s 25 Gbit/s 40 Gbit/s
- Insulation resistance >107 Ω
- Limiting temperature -50 ... +125 °C
- Mating cycles ≥ 10,000
Material properties
- Material (insert) Polyamide (PA)
- Colour (insert) Black
- Material flammability class acc. to UL 94 V-0
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Not contained
Specifications and approvals
-
Specifications
Inspired by UIC 50558Inspired by IRS 50558IEC 61373 Category 2IEC 60529
Commercial data
- Packaging size 1
- Net weight 42 g
- Country of origin India
- European customs tariff number 85366990
- eCl@ss 27440205 Contact insert for industrial connectors
- UNSPSC 24.0 39121522
