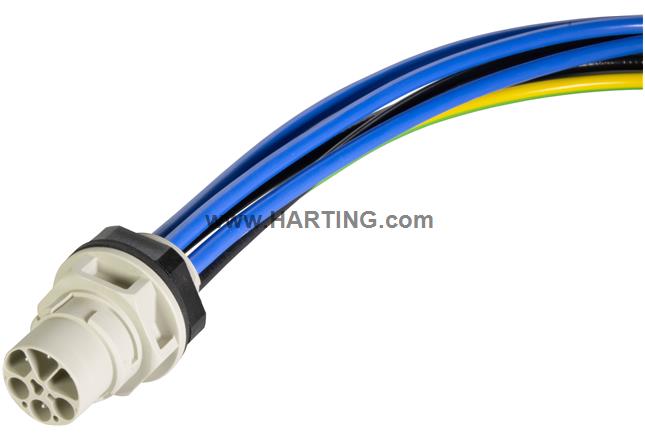

Resumen de caracterísiticas
Pasamuros
Con conductores, para montaje frontal
25 cm
Detalles del producto
Identification
- Category Connectors
- Series Circular connectors Size 15
- Element Panel feed through
-
Specification
With conductorsfor front mounting
Version
- Gender Male
- Shielding Unshielded
- Number of contacts 5
- Number of signal contacts 3
- Number of power contacts 2
- PE contact Yes
- Locking type Toggle locking
- Pack contents incl. lock nut
Technical characteristics
- Conductor cross-section (mm²) 2.5 mm²
- Conductor cross-section (AWG) AWG 14
- Pollution degree 3
- Rated current (signal) 4 A
- Rated voltage (signal) 48 V AC/DC
- Rated impulse voltage (signal) 0.8 kV
- Pollution degree (signal) 3
- Rated current (power) 20 A
- Rated voltage (power) 48 V AC/DC
- Rated voltage conductor-conductor (Power) 48 V
- Rated impulse voltage (power) 0.8 kV
- Pollution degree (power) 3
- Tightening torque 2 Nm Lock nut
- Limiting temperature -30 ... +90 °C
- Mating cycles ≥ 100
-
Degree of protection acc. to IEC 60529
IP65IP67
- Isolation group I (600 ≤ CTI)
- Thickness of the panel 1 ... 10 mm
- Conductor length 25 cm
Material properties
- Material (insert) Polyamide (PA)
- Material (contacts) Copper alloy
- Surface (contacts) Silver plated
- Material (hood/housing) Polyamide (PA)
- Material flammability class acc. to UL 94 V-0
- RoHS compliant with exemption
- RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status compliant with exemption
- China RoHS 50
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Yes
- REACH SVHC substances Lead
- California Proposition 65 substances Yes
- California Proposition 65 substances Lead
Specifications and approvals
-
Specifications
IEC 61076-2-116IEC 60228IEC 61984VDE 0482-332-1-2IEC 60332-1-2 Flame retardancyUL 2556 Sec. 9.4 (VW-1)UL 2556 Sec. 9.3 (FT1)
Commercial data
- Packaging size 1
- Country of origin Romania
- European customs tariff number 85366990
- eCl@ss 27440103 Sensor-actuator connector chassis (sensor technology acturator)
- UNSPSC 24.0 39121413
