Resumen de caracterísiticas

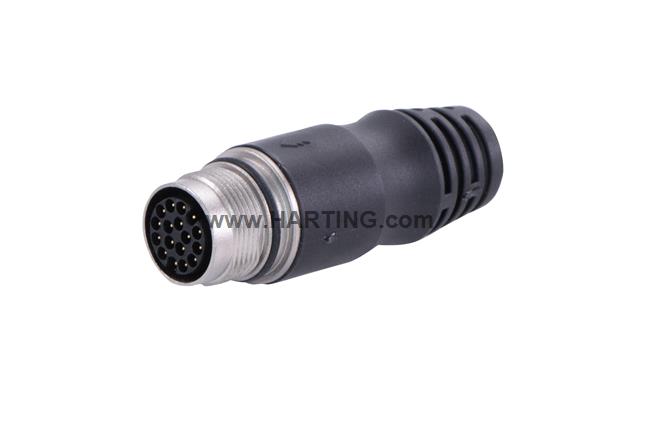

Cable connector
Straight
Male
Screw termination
PA6
Black
Contacts: 17
Copper Gold plated
Rated current: 2 A
Thermoplastic polyurethane (TPU)
Degree of protection: IP67
Detalles del producto
Identification
- Category Connectors
- Element Cable connector
- Specification Straight
Version
- Termination method Screw termination
- Gender Male
- Shielding Shielded
- Number of contacts 17
Technical characteristics
- Conductor cross-section (AWG) AWG 22
- Wire outer diameter 1.3 mm
- Rated current 2 A
- Rated voltage 60 V
- Rated impulse voltage 3 kV
- Limiting temperature -20 ... +80 °C
- Mating cycles ≥ 100
- Degree of protection acc. to IEC 60529 IP67
- Cable diameter 8.3 mm
Material properties
- Material (insert) PA6
- Colour (insert) Black
- Material (contacts) Copper
- Surface (contacts) Gold plated
- Material (hood/housing) Thermoplastic polyurethane (TPU)
- Colour (hood/housing) Black
Specifications and approvals
- Specifications IEC 63171-6
- UL / CSA UL 1581 VW-1
Commercial data
- Packaging size 1
- Country of origin China
- eCl@ss 27440115 Circular connector (set)
