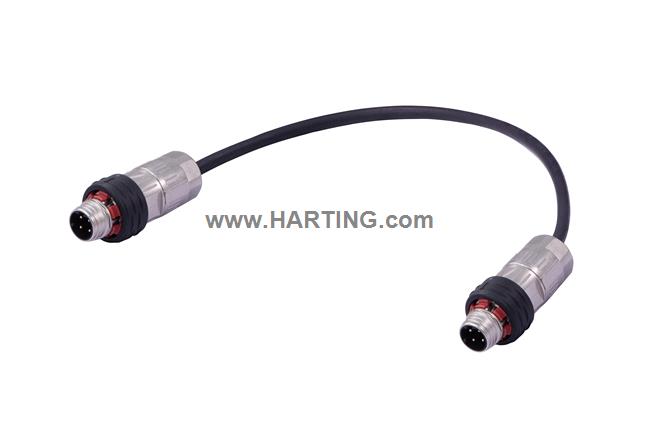

Resumen de caracterísiticas
Conjuntos de cable
Premontado por ambos lados
Cable de cobre (redondo)
Longitud de cable: 1 m
Detalles del producto
Part List
-
Part list details
Tipo de caboHa-Vis EtherRail 4xAWG22/7 bk CAT5Conector 1M12-SD-PPI-CC-CRIMP-4P-DCOD-M-STR-SHLDConector 2M12-SD-PPI-CC-CRIMP-4P-DCOD-M-STR-SHLD
Identification
- Category System cabling
- Series Circular connectors M12
- Element Cable assemblies
- Specification Pre-assembled on both sides
-
Connector 1
M12 D-codingStraight
-
Connector 2
M12 D-codingStraight
- Type of cable Copper cable (round)
Version
- Cable length 1 m
- Number of cores 4
- Core structure 4x AWG 22/7
- Shielding Shielded
- Number of contacts 4
- Coding D-coding
- Locking type Inner PushPull
Technical characteristics
- Transmission characteristics Cat. 5 Class D up to 100 MHz
-
Data rate
10 Mbit/s 100 Mbit/s
- Limiting temperature -40 ... +85 °C
- Degree of protection acc. to IEC 60529 IP65 / IP67 mated condition
- Cable diameter 6.6 mm ± 0.3 mm
Material properties
- Material (cable) Polyolefin copolymer electron beam crosslinked Comp 752
- Colour (cable) Black
Specifications and approvals
- Specifications EN 45545-2 Fire protection on railway vehicles
Commercial data
- Packaging size 1
- Country of origin Romania
- European customs tariff number 85444290
- eCl@ss 27060390 Ready-made data cable (unspecified)
