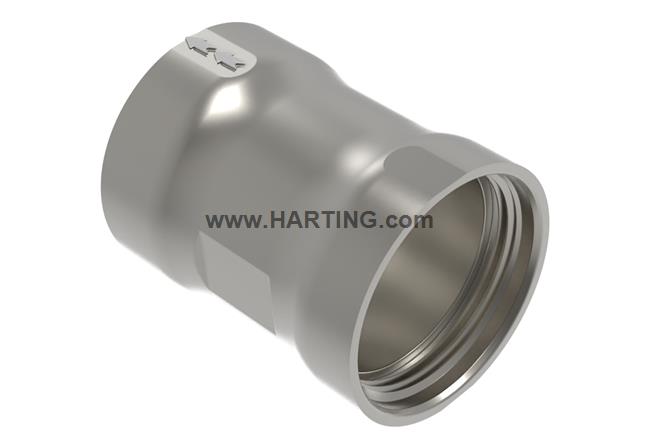

Resumen de caracterísiticas
Carcasa
con rosca M32 integrada, Recto
Tamaño: 20
Entrada superior
1x M32
Material (capota/base): Cinc fundido a presión
Niquelado
Grado de protección: IP67, IPX9
Detalles del producto
Identification
- Category Connectors
- Series HARTING ICC
- Type of hood/housing Backshell
-
Description of hood/housing
with integrated M32 threadStraight
Version
- Size 20
- Version Top entry
- Number of cable entries 1
- Cable entry 1x M32
- Details for exclusive use with the ICC Size 20 400 A insert
Technical characteristics
- Tightening torque 15 Nm Backshell
- Limiting temperature -40 ... +125 °C
- Number of relockings ≥ 10
-
Degree of protection acc. to IEC 60529
IP67IPX9
Material properties
- Material (hood/housing) Zinc die-cast
- Surface (hood/housing) Nickel plated
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Not contained
Specifications and approvals
-
Specifications
IEC 61984IEC 60664-1
- Approvals CE
Commercial data
- Packaging size 1
- Net weight 0.2 g
- Country of origin India
- European customs tariff number 85389099
- GTIN 5713140491106
- eCl@ss 27440224 Shell for circular connectors
- UNSPSC 24.0 39121405
