Resumen de caracterísiticas

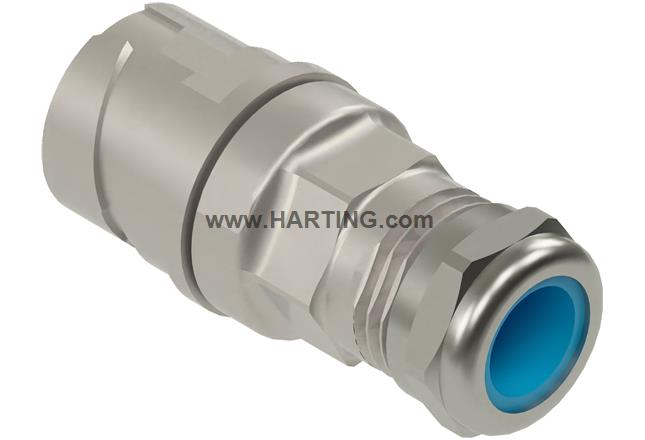

Cable to cable housing, Backshell
With integrated cable gland, Straight
Size: 20
Bayonet locking
Top entry
Material (hood/housing): Zinc die-cast
Nickel plated
Material (seal): EPDM, TPE
Degree of protection: IP67, IPX9
Detalles del producto
Identification
- Category Connectors
- Series HARTING ICC
-
Type of hood/housing
Cable to cable housingBackshell
-
Description of hood/housing
With integrated cable glandStraight
Version
- Size 20
- Version Top entry
- Locking type Bayonet locking
Technical characteristics
-
Tightening torque
12 Nm Cable gland15 Nm Backshell
- Limiting temperature -40 ... +125 °C
-
Degree of protection acc. to IEC 60529
IP67IPX9
- Clamping range 13 ... 17 mm
Material properties
- Material (hood/housing) Zinc die-cast
- Surface (hood/housing) Nickel plated
-
Material (seal)
EPDMTPE
-
Colour (seal)
BlackBlue
Specifications and approvals
-
Specifications
IEC 61984IEC 60664-1
- Approvals CE
Commercial data
- Packaging size 1
- GTIN 5713140829381
- eCl@ss 27440224 Shell for circular connectors
- UNSPSC 24.0 39121405
