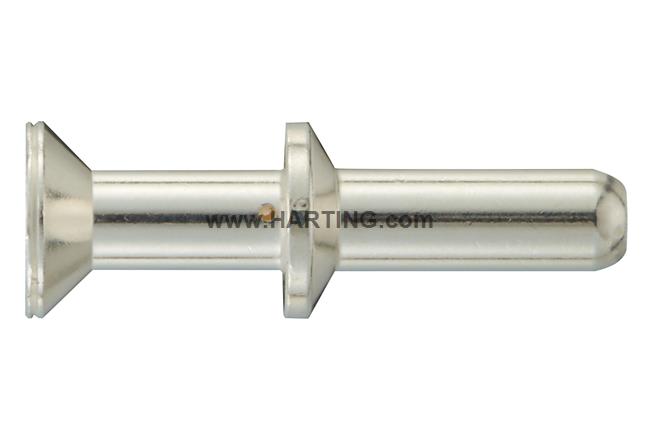

Resumen de caracterísiticas
Contacto de engaste
Corriente nominal: ≤70 A
Macho
Aleación de cobre
Chapado en plata
AWG 8
Detalles del producto
Identification
- Category Contacts
- Series TC 70
- Type of contact Crimp contact
Version
- Termination method Crimp termination
- Gender Male
- Manufacturing process Turned contacts
Technical characteristics
- Conductor cross-section [AWG] AWG 8
- Rated current ≤ 70 A
- Contact resistance ≤ 0.5 mΩ
- Stripping length 15.5 mm
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
Material properties
- Material (contacts) Copper alloy
- Surface (contacts) Silver plated
- RoHS compliant with exemption
- RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status compliant with exemption
- China RoHS 50
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Yes
- REACH SVHC substances Lead
- ECHA SCIP number b51e5b97-eeb5-438b-8538-f1771d43c17d
- California Proposition 65 substances Yes
- California Proposition 65 substances Lead
Specifications and approvals
-
Specifications
IEC 60664-1IEC 61984
Commercial data
- Packaging size 10
- Net weight 9.35 g
- Country of origin Germany
- European customs tariff number 85359000
- GTIN 5713140937581
- eCl@ss 27440204 Contact for industrial connectors
- ETIM EC000796
- UNSPSC 24.0 39121522
