Resumen de caracterísiticas

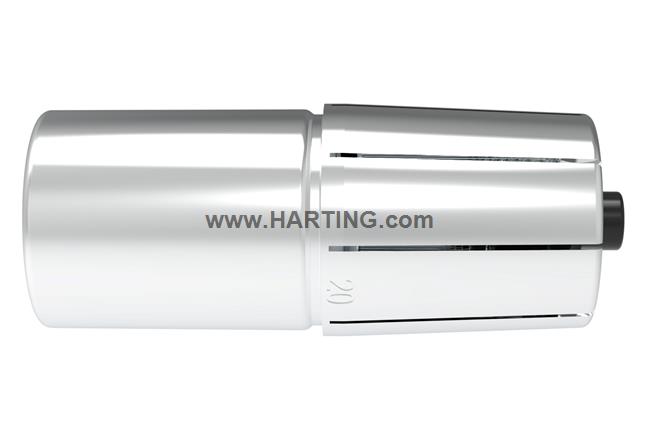

Contacto de engaste
Corriente nominal: ≤400 A
Hembra
Aleación de cobre
Chapado en plata
Sección de conductor: 120 mm²
Detalles del producto
Identification
- Category Contacts
- Series TC 400
- Type of contact Crimp contact
Version
- Termination method Crimp termination
- Gender Female
- Manufacturing process Turned contacts
- Details The vibration and shock resistance can only be met if the cables are fixed at an appropriate distance. Instructions for the spacing of strain relief can be found in the document in eCatalogue under the section Instructions.
Technical characteristics
- Conductor cross-section 120 mm²
- Rated current ≤ 400 A
- Contact resistance ≤ 0.3 mΩ
- Stripping length 22.5 mm
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
- Vibration resistance Category 2 acc. to IEC 61373
- Shock resistance Category 2 acc. to IEC 61373
Material properties
- Material (contacts) Copper alloy
- Surface (contacts) Silver plated
Specifications and approvals
-
Specifications
IEC 60664-1IEC 61984
Commercial data
- Packaging size 1
- Country of origin Germany
- European customs tariff number 85359000
- eCl@ss 27440204 Contact for industrial connectors
- ETIM EC000796
- UNSPSC 24.0 39121522
