N.º de referencia: 09 11 000 6550

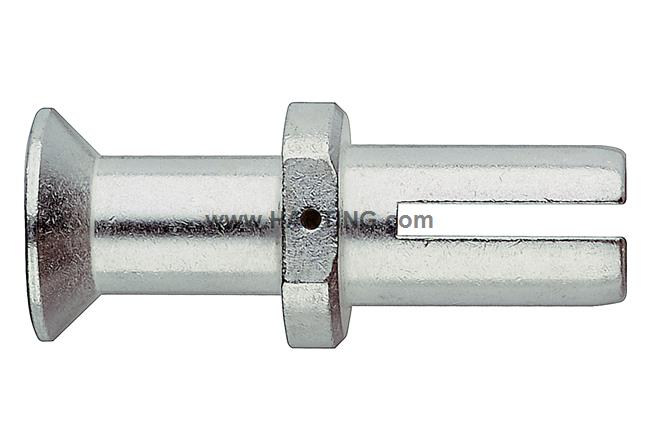

Han TC350 male contact 10sqmm
Han TC350 male contact 10sqmm

La imagen se muestra con fines ilustrativos exclusivamente. Consulte la descripción del producto.

Resumen de caracterísiticas
Crimp contact
Rated current: ≤350 A
Male
Copper alloy
Silver plated
Conductor cross-section: 10 mm²
Notas
Comparar
NUEVO
Crimp Advisor
N.º de referencia: 09 11 000 6550
Han TC350 male contact 10sqmm
Notas
Comparar
NUEVO
Crimp Advisor
All functionalities, price and availability after sign in.
Añadir a la lista de deseos
Productos combinables NUEVO
Combinables
8
Tools
6
Accessories
1
Detalles del producto
Identification
  • Category Contacts
  • Series TC 350
  • Type of contact Crimp contact
Version
  • Gender Male
  • Manufacturing process Turned contacts
  • Details The vibration and shock resistance can only be met if the cables are fixed at an appropriate distance. Instructions for the spacing of strain relief can be found in the document in eCatalogue under the section Instructions.
Technical characteristics
  • Conductor cross-section 10 mm²
  • Rated current ≤ 350 A
  • Contact resistance ≤ 0.3 mΩ
  • Stripping length 19 mm
  • Limiting temperature -40 ... +125 °C
  • Mating cycles ≥ 500
  • Vibration resistance Category 2 acc. to IEC 61373
  • Shock resistance Category 2 acc. to IEC 61373
Material properties
  • Material (contacts) Copper alloy
  • Surface (contacts) Silver plated
Specifications and approvals
  • Specifications
    IEC 60664-1
    IEC 61984
Commercial data
  • Packaging size 1
  • Net weight 51 g
  • Country of origin Germany
  • European customs tariff number 85359000
  • GTIN 5713140188440
  • ETIM EC000796
  • eCl@ss 27440204 Contact for industrial connectors
