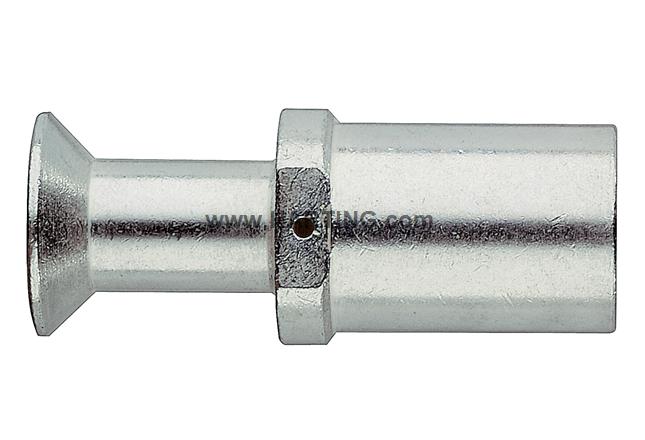

Resumen de caracterísiticas
Contacto de engaste
Corriente nominal: ≤350 A
Hembra
Aleación de cobre
Chapado en plata
Sección de conductor: 25 mm²
Detalles del producto
Identification
- Category Contacts
- Series TC 350
- Type of contact Crimp contact
Version
- Termination method Crimp termination
- Gender Female
- Manufacturing process Turned contacts
- Details The vibration and shock resistance can only be met if the cables are fixed at an appropriate distance. Instructions for the spacing of strain relief can be found in the document in eCatalogue under the section Instructions.
Technical characteristics
- Conductor cross-section 25 mm²
- Rated current ≤ 350 A
- Contact resistance ≤ 0.3 mΩ
- Stripping length 26 mm
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
- Vibration resistance Category 2 acc. to IEC 61373
- Shock resistance Category 2 acc. to IEC 61373
Material properties
- Material (contacts) Copper alloy
- Surface (contacts) Silver plated
- RoHS compliant with exemption
- RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status conforme con exención
- China RoHS 50
- REACH Annex XVII substances No incluido
- REACH ANNEX XIV substances No incluido
- REACH SVHC substances Sí
- REACH SVHC substances Lead
- ECHA SCIP number b51e5b97-eeb5-438b-8538-f1771d43c17d
- California Proposition 65 substances Yes
- California Proposition 65 substances Lead
Specifications and approvals
-
Specifications
IEC 60664-1IEC 61984
Commercial data
- Packaging size 1
- Net weight 60 g
- Country of origin Romania
- European customs tariff number 85359000
- GTIN 5713140015449
- eCl@ss 27440204 Contact for industrial connectors
- ETIM EC000796
- UNSPSC 24.0 39121522
