Resumen de caracterísiticas

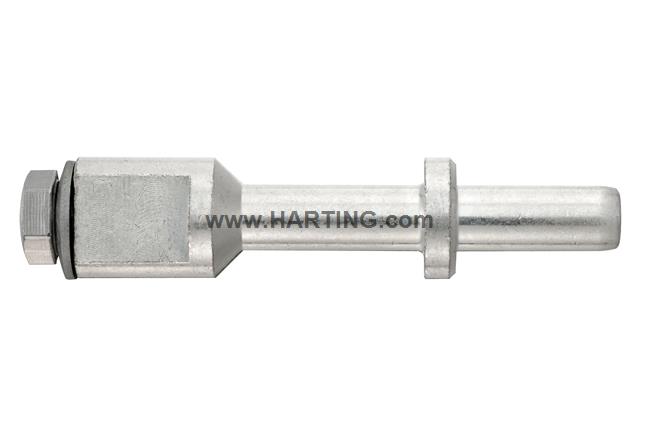

Screw contact
M8
Rated current: ≤250 A
Male
Copper alloy
Silver plated
Conductor cross-section: 70 mm²
Detalles del producto
Identification
- Category Contacts
- Series TC 250
- Type of contact Screw contact
- Description of the contact M8
Version
- Gender Male
- Manufacturing process Turned contacts
- Details The vibration and shock resistance can only be met if the cables are fixed at an appropriate distance. Instructions for the spacing of strain relief can be found in the document in eCatalogue under the section Instructions.
Technical characteristics
- Conductor cross-section 70 mm²
- Rated current ≤ 250 A
- Contact resistance ≤ 0.3 mΩ
- Tightening torque 10 Nm
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
- Vibration resistance Category 2 acc. to IEC 61373
- Shock resistance Category 2 acc. to IEC 61373
Material properties
- Material (contacts) Copper alloy
- Surface (contacts) Silver plated
Specifications and approvals
-
Specifications
IEC 60664-1IEC 61984
Commercial data
- Packaging size 1
- Net weight 90 g
- Country of origin Germany
- European customs tariff number 85359000
- GTIN 5713140937567
- ETIM EC000796
- eCl@ss 27440204 Contact for industrial connectors
