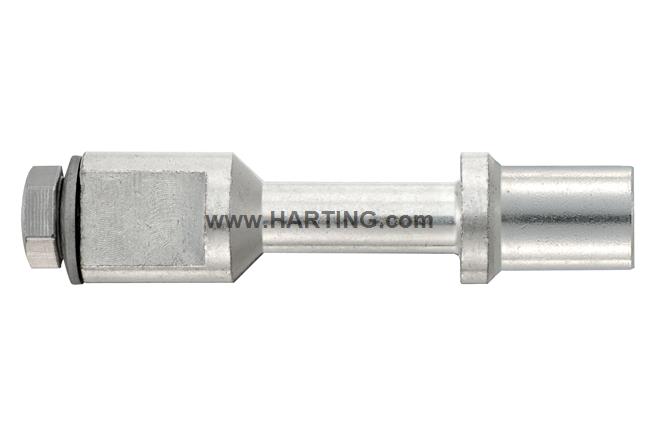

Resumen de caracterísiticas
Contacto de tornillo
M8
Corriente nominal: ≤250 A
Hembra
Aleación de cobre
Chapado en plata
Sección de conductor: 70 mm²
Detalles del producto
Identification
- Category 插针
- Series TC 250
- Type of contact 螺栓插针
- Description of the contact M8
Version
- Termination method 螺栓接线
- Gender 母头
- Manufacturing process 车削针
- Details 只有当电缆以适当距离固定时，才能满足抗振和抗冲击要求。有关应力消除间隔的说明，可以在电子目录文档的说明部分下找到。
Technical characteristics
- Conductor cross-section (mm²) 70 mm²
- Rated current ≤ 250 A
- Contact resistance ≤ 0.3 mΩ
- Tightening torque 10 Nm
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
- Vibration resistance 2 类，符合 IEC 61373 标准
- Shock resistance 2 类，符合 IEC 61373 标准
Material properties
- Material (contacts) 铜合金
- Surface (contacts) 镀银
- RoHS 符合豁免标准
- RoHS exemptions 6(c)：铜合金含铅量高达 4 %
- ELV status 符合豁免标准
- China RoHS 50
- REACH Annex XVII substances 不包含
- REACH ANNEX XIV substances 不包含
- REACH SVHC substances 有
- REACH SVHC substances 铅
- California Proposition 65 substances 有
-
California Proposition 65 substances
铅镍
Specifications and approvals
-
Specifications
IEC 60664-1IEC 61984
Commercial data
- Packaging size 1
- Net weight 86 g
- Country of origin 罗马尼亚
- European customs tariff number 85359000
- GTIN 5713140937185
- eCl@ss 27440204 Contact for industrial connectors
- ETIM EC000796
- UNSPSC 24.0 39121522
