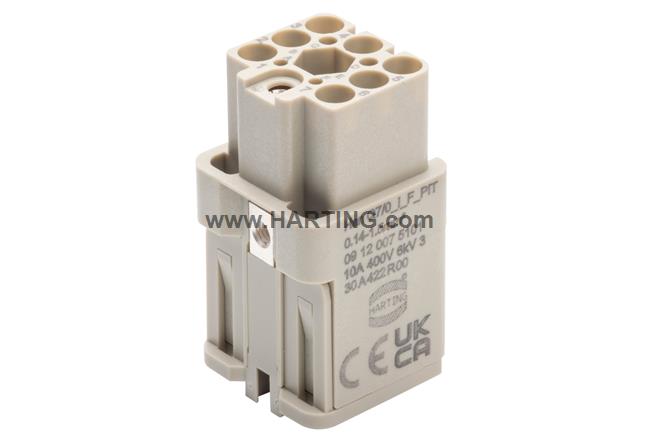

Resumen de caracterísiticas
Inserts
Push-In
Female
Polycarbonate (PC)
RAL 7032 (pebble grey)
Rated current: 10 A
Size: 3 A
Contacts: 7
Conductor cross-section: 0.14 ... 1.5 mm²
Copper alloy
Silver plated
Detalles del producto
Identification
- Category Inserts
- Series Han® Q
- Identification 7/0
Version
- Termination method Push-In
- Gender Female
- Size 3 A
- Number of contacts 7
- PE contact Yes
Technical characteristics
- Conductor cross-section 0.14 ... 1.5 mm²
- Rated current 10 A
- Rated voltage 400 V
- Rated impulse voltage 6 kV
- Pollution degree 3
- Insulation resistance >1010 Ω
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
Material properties
- Material (insert) Polycarbonate (PC)
- Colour (insert) RAL 7032 (pebble grey)
- Material (contacts) Copper alloy
- Surface (contacts) Silver plated
- Material flammability class acc. to UL 94 V-0
Specifications and approvals
-
Specifications
IEC 60664-1IEC 61984
Commercial data
- Packaging size 10
- Country of origin Germany
- European customs tariff number 85389099
- GTIN 5713140447912
- eCl@ss 27440205 Contact insert for industrial connectors
