Resumen de caracterísiticas
Distribuidor de energía

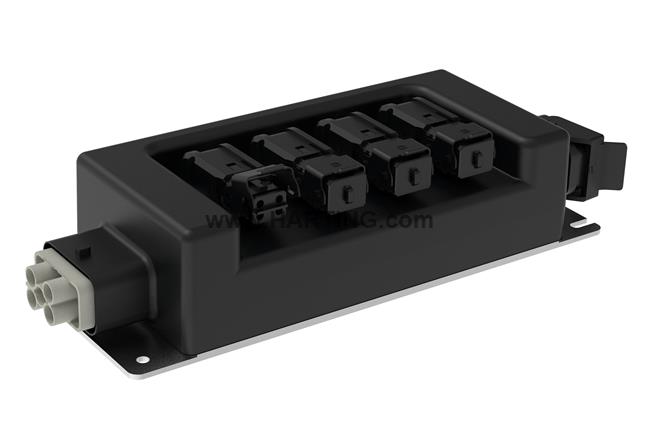

Con 2x Han® Q 4/2, 4x Han® 1A (3+PE)
Material (capota/base): Poliamida (PA)
RAL 9005 (negro intenso)
Grado de protección: IP54
Detalles del producto
Part List
-
Part list details
Connector 1Han Q 4/2 F-cHan D F Crimp Contact Ag AWG 14Han C-female contact-c 4mm²Connector 2Han E F Crimp Contact Ag 4.0 mm²/ 12 AWGHan 1A-base angledHan 1A-3+PE-c-f
Identification
- Category Energy distributors
- Series of hoods/housings Han-Power® T
- Element Energy distributor
-
Specification
With 2x Han® Q 4/24x Han® 1A (3+PE)
Version
-
Details
Contact inserts must not be coupled or decoupled under electrical load.Contact inserts must not be powered-up in the un-mated condition.Circuits connected to the output must be protected against overcurrent in accordance with the rules of IEC 60364.Installation only by electrical skilled or qualified person.
Technical characteristics
- Rated current 16 A
- Rated voltage conductor-earth 400 V
- Rated voltage conductor-conductor 400 V
- Rated impulse voltage 6 kV
- Pollution degree 3
- Rated current (signal) 2 A
- Rated voltage (signal) 24 V
- Rated impulse voltage (signal) 4 kV
- Insulation resistance >108 Ω
- Limiting temperature -30 ... +40 °C
-
Mating cycles
≥ 500≥ 100
- Degree of protection acc. to IEC 60529 IP54
Material properties
- Material (contacts) Copper alloy
- Material (hood/housing) Polyamide (PA)
- Colour (hood/housing) RAL 9005 (jet black)
-
Material (seal)
NBRTPE
- RoHS compliant with exemption
- RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status compliant with exemption
- China RoHS 50
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Yes
- REACH SVHC substances Lead
- ECHA SCIP number 567c8b78-5fa0-43aa-a4c0-beb9d99b7769
- California Proposition 65 substances Yes
- California Proposition 65 substances Lead
Specifications and approvals
-
Specifications
IEC 60664-1IEC 61984
- Approvals CE
Commercial data
- Packaging size 1
- Net weight 1,388 g
- Country of origin Germany
- European customs tariff number 85444290
- eCl@ss 27142409 Small distribution board
- ETIM EC000214
- UNSPSC 24.0 39121303
