Resumen de caracterísiticas

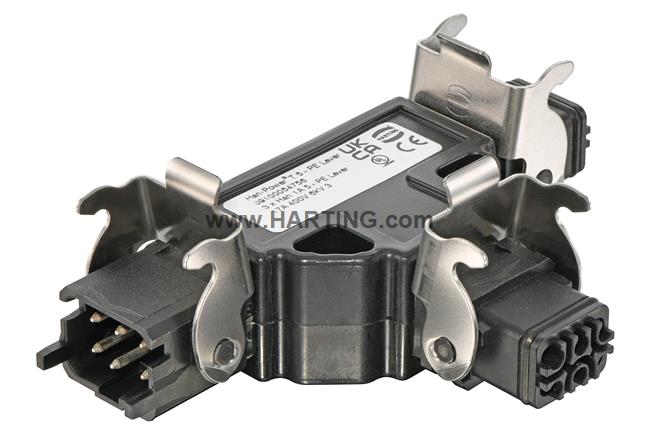

Distribuidor de energía
Con 3x Han® 1A
Contactos: 5
Sección de conductor: 0.14 ... 2.5 mm²
Grado de protección: IP20
Detalles del producto
Identification
- Category Energy distributors
- Series of hoods/housings Han-Power® T
- Element Energy distributor
- Specification With 3x Han® 1A
Version
- Number of contacts 5
- PE contact Yes
- Locking type Single locking lever
-
Details
Contact inserts must not be coupled or decoupled under electrical load.Contact inserts must not be powered-up in the un-mated condition.Circuits connected to the output must be protected against overcurrent in accordance with the rules of IEC 60364.Installation only by electrical skilled or qualified person.
Technical characteristics
- Conductor cross-section 0.14 ... 2.5 mm²
- Input current 17 A
- Output current 8.5 A
- Rated voltage 400 V
- Rated impulse voltage 6 kV
- Pollution degree 3
- Insulation resistance >108 Ω
- Limiting temperature -30 ... +90 °C
- Mating cycles ≥ 100
- Degree of protection acc. to IEC 60529 IP20
Material properties
- Material flammability class acc. to UL 94 V-0
- RoHS compliant with exemption
- RoHS exemptions 6(c): Copper alloy containing up to 4 % lead by weight
- ELV status compliant with exemption
- China RoHS 50
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Yes
- REACH SVHC substances Lead
- ECHA SCIP number 5dbb3851-b94e-4e88-97a1-571845975242
- California Proposition 65 substances Yes
- California Proposition 65 substances Lead
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 70 g
- European customs tariff number 85366990
- GTIN 5713140398115
- eCl@ss 27142409 Small distribution board
- UNSPSC 24.0 39121303
