Resumen de caracterísiticas

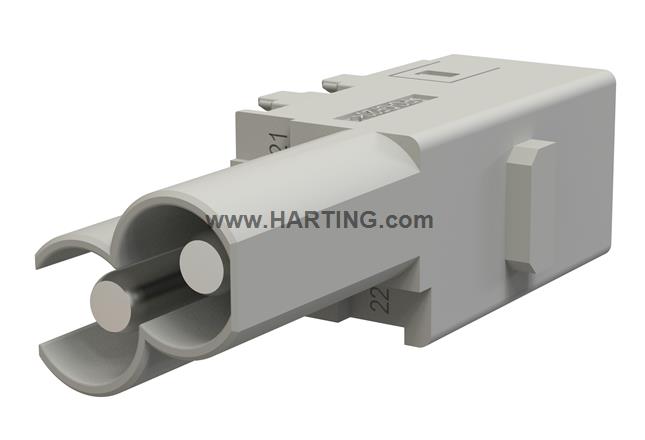

Han® Domino CC Cube
Domino module
Large Tab
Push-In
Male
Contacts: 2
Conductor cross-section: 1.5 ... 6 mm²
Rated current: 40 A
Polycarbonate (PC)
RAL 7032 (pebble grey)
Detalles del producto
Identification
- Category Modules
- Series Han-Modular®
- Type of module Han® Domino CC Cube
- Size of the module Domino module
- Description of the module Large Tab
Version
- Termination method Push-In
- Gender Male
- Number of contacts 2
Technical characteristics
- Conductor cross-section (mm²) 1.5 ... 6 mm²
- Wire outer diameter ≤6.3 mm
- Rated current 40 A
- Rated voltage 500 V
- Rated impulse voltage 6 kV
- Pollution degree 3
- Insulation resistance >1010 Ω
- Stripping length 12 mm
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
Material properties
- Material (insert) Polycarbonate (PC)
- Colour (insert) RAL 7032 (pebble grey)
- Material flammability class acc. to UL 94 V-0
- RoHS compliant
- ELV status compliant
- China RoHS e
- REACH Annex XVII substances Not contained
- REACH ANNEX XIV substances Not contained
- REACH SVHC substances Not contained
- California Proposition 65 substances Not contained
- Fire protection on railway vehicles EN 45545-2 (2020-08) + A1 (2023-10)
-
Requirement set with Hazard Levels
R22 (HL 1-3)R23 (HL 1-3)
Specifications and approvals
-
Specifications
IEC 60664-1IEC 61984IEC 61373 Category 2IEC 60352-7
Commercial data
- Packaging size 1
- Net weight 14.3 g
- Country of origin Romania
- European customs tariff number 85366990
- GTIN 5713141132879
- eCl@ss 27440217 Module for industrial connectors (power/signals)
- ETIM EC000438
- UNSPSC 24.0 39121552
