Este producto está disponible bajo petición. Por favor, póngase en contacto con su oficina de ventas HARTING.

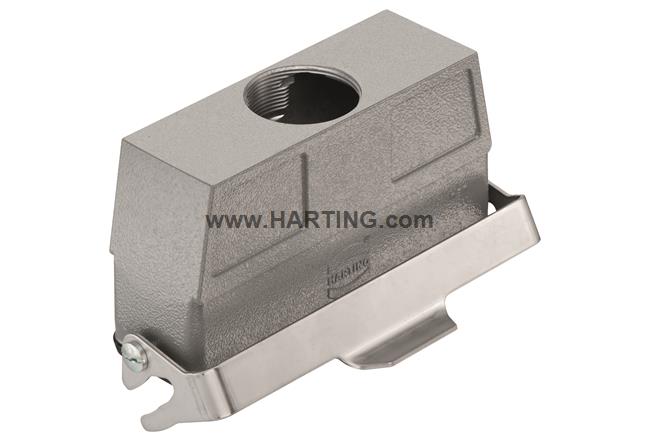

La imagen se muestra con fines ilustrativos exclusivamente. Consulte la descripción del producto.
Han L32 B HCC HC SL M40
Cable to cable housing, Size: L32 B, Single locking lever, Steel, zinc plated, Top entry, 1x M40, Material (hood/housing): Aluminium die-cast, Powder-coated, RAL 7037 (dust grey), Material (seal): NBR, Degree of protection: IP65
N.º de referencia: 19 30 132 0738 ML
Go to:
- Category Hoods/Housings
- Series of hoods/housings Han® B
- Type of hood/housing Cable to cable housing
- Locking type Single locking lever
- Size L32 B
- Version Top entry
- Cable entry 1x M40
- Field of application Standard hoods/housings for industrial connectors
- Limiting temperature -40 ... +125 °C
- Degree of protection acc. to IEC 60529 IP65
-
Type rating acc. to UL 50 / UL 50E
44X12
- Material (hood/housing) Aluminium die-cast
- Surface (hood/housing) Powder-coated
- Colour (hood/housing) RAL 7037 (dust grey)
- Material (seal) NBR
- Material (locking) Steel, zinc plated
- Approvals DNV GL
- CE Yes
- Packaging size 1
- Net weight 0.01 g
- Country of origin China
- eCl@ss 27440202 Shell for industrial connectors
