Resumen de caracterísiticas

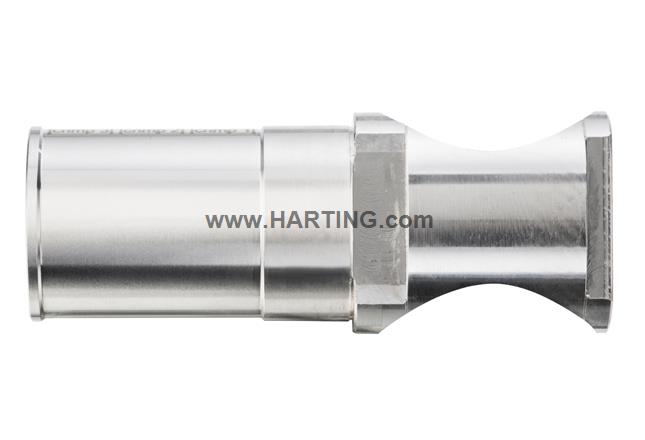

Contacto de engaste
Corriente nominal: 850 A
Hembra
Aleación de cobre
Chapado en plata
Sección de conductor: 240 mm²
Detalles del producto
Identification
- Category Contacts
- Series Han® HPTC
- Type of contact Crimp contact
- Type of cable Copper cable (round)
- Features for stranded wires according to IEC 60228 Class 5
Version
- Termination method Crimp termination
- Gender Female
- Manufacturing process Turned contacts
Technical characteristics
- Conductor cross-section 240 mm²
- Rated current 850 A
- Contact resistance ≤ 0.3 mΩ
- Stripping length 43 mm
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 25
Material properties
- Material (contacts) Copper alloy
- Surface (contacts) Silver plated
Specifications and approvals
-
Specifications
IEC 60664-1IEC 61984
Commercial data
- Packaging size 1
- Net weight 274 g
- Country of origin Germany
- European customs tariff number 85366990
- GTIN 5713140936386
- eCl@ss 27440204 Contact for industrial connectors
- ETIM EC000796
- UNSPSC 24.0 39121522
