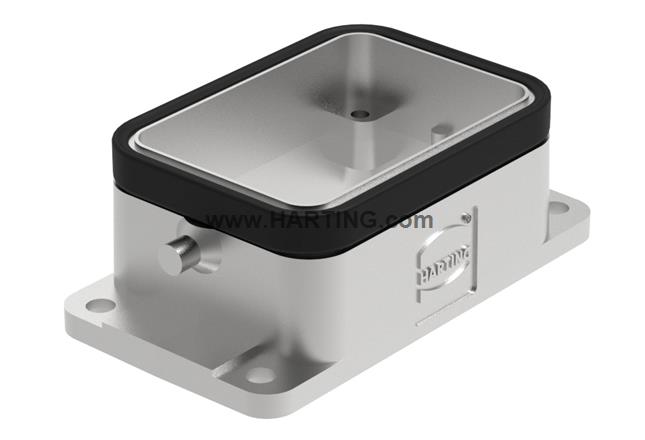

Resumen de caracterísiticas
Base montaje tipo pasamuros
Junta hermética externa
Tamaño: 6 B
Construcción baja
Enclavamiento único (en la capota)
Material (capota/base): Fundición de aluminio
No revestido
No pintado
Material (junta): NBR
Detalles del producto
Identification
- Category Hoods / Housings
- Series of hoods/housings Han® EMC/B
- Type of hood/housing Bulkhead mounted housing
- Description of hood/housing External seal
- Type Low construction
Version
- Size 6 B
- Locking type Single locking lever (on the hood)
- Field of application Hoods/Housings for higher EMC requirements
Technical characteristics
- Tightening torque (fixing screw) 1 Nm
- Limiting temperature -40 ... +125 °C
- Note on the limiting temperature For use as a connector according to IEC 61984.
- Mating cycles ≥ 500
- Degree of protection acc. to IEC 60529 IP66
-
Type rating acc. to UL 50 / UL 50E
412
Material properties
- Material (hood/housing) Aluminium die-cast
- Surface (hood/housing) Uncoated
- Colour (hood/housing) Unpainted
- Material (seal) NBR
Specifications and approvals
Commercial data
- Packaging size 1
- Net weight 0.01 g
- Country of origin China
- eCl@ss 27440202 Shell for industrial connectors
- ETIM EC000437
- UNSPSC 24.0 39121466
