Resumen de caracterísiticas
Aislantes
Terminación de tornillo
Macho
Policarbonato (PC)
RAL 7032 (gris guijarro)
Corriente nominal: 16 A
Tamaño: 24 B
Contactos: 24
Sección de conductor: 0.75 ... 2.5 mm²
Aleación de cobre
Chapado en plata

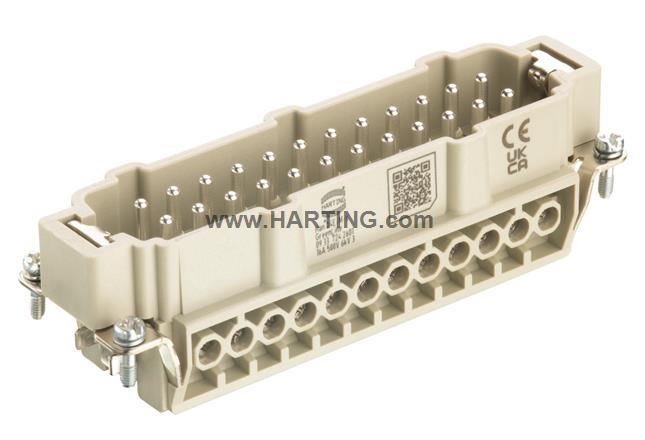

Detalles del producto
Identification
- Category Inserts
- Series Han E®
- Features Han® GreenLine
Version
- Termination method Screw termination
- Gender Male
- Size 24 B
- With wire protection Yes
- Number of contacts 24
- PE contact Yes
Technical characteristics
- Conductor cross-section 0.75 ... 2.5 mm²
- Conductor cross-section AWG 18 ... AWG 14
- Rated current 16 A
-
Rated voltage
500 V500 V
- Rated impulse voltage 6 kV
- Pollution degree 3
- Rated voltage acc. to UL 600 V
- Rated voltage acc. to CSA 600 V
- Insulation resistance >1010 Ω
- Contact resistance ≤ 1 mΩ
- Stripping length 7.5 mm
- Tightening torque 0.5 Nm
- Limiting temperature -40 ... +125 °C
- Mating cycles ≥ 500
Material properties
- Material (insert) Polycarbonate (PC)
- Colour (insert) RAL 7032 (pebble grey)
- Material (contacts) Copper alloy
- Surface (contacts) Silver plated
- Material flammability class acc. to UL 94 V-0
Specifications and approvals
-
Specifications
IEC 60664-1IEC 61984
Commercial data
- Packaging size 1
- Net weight 50 g
- Country of origin Germany
- European customs tariff number 85366990
- GTIN 5713140479630
- eCl@ss 27440205 Contact insert for industrial connectors
- ETIM EC000438
- UNSPSC 24.0 39121522
